Construction Machinery Anchor Bolt Making Machine and Thread Rollers TB-70S

FOB Reference Price:Get Latest Price
US $59,500-62,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Process Threads
Production Capacity:
800-1500mm/set
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-70S
Voltage:
3-380V 50HZ
Power(W):
22 KW
Dimension(L*W*H):
2820x2750x1900mm
Weight:
6000KG
Certification:
ISO 9001-2008,CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Green or customised
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
1.Construction Machinery Anchor Bolt Making Machine and Thread Rollers TB-70S is packed in wooden case
2. Neutral package can be acceptable
Port
shenzhen
Lead Time :
30-45 days
Product Description

Parameters of TOBEST  TB-70S





ModelTOBEST TB-70SHydraulic motor3.75KW 380V
Main shaft diameterφ100mm Inside diameter of Hydraulic cylinderφ300mm
Diameter range for the threads rolledφ15mm--φ100mmMaterial of Oil tubeHigh-pressure hose
Range of pitch rolled1mm≤T≤10mmHydraulic Pressure range70--130Kgf/cm2
Thread length of In feed180mmHydraulic cylinder stroke1-50mm
Outside diameter of rolling dieφ200-φ270mmHydraulic cylinder movement modeDouble action
Inside diameter of rolling die(keyway)φ100mm Max. rolling pressure50T
Thickness of rolling die180mmHydraulic cylinder using pressure100Kgf/cm2
Rotation speed of rolling die10\18\30\51r/minCenter height 245mm
Gearbox wayWorm gear driveCooling pump120W 380V
Transmission wayChange speed by wheelHydraulic oil cooling methodAir-cooling
Main power motor22KW 380VDimension2820x2750x1900mm





Features

1. Combine dual-row needle bearing and cylindrical roller bearing for machine spindle to guarantee the precision and rigidity.

2. The main spindle drive system uses wheel control and turbine worm drive, to realize high torque drive, smooth transmission, changing speed easily.

3. Adopt sandwich plate valve for hydraulic system, for feeding smoothly, beautiful appearance, stable performance.

4. Machine has manual,semi-auto,auto modes for controlling, adopt new dial digital display time relay to control the rolling time and the intermittent time directly.

5. Machine has rigid structure and strong output



Product pictures

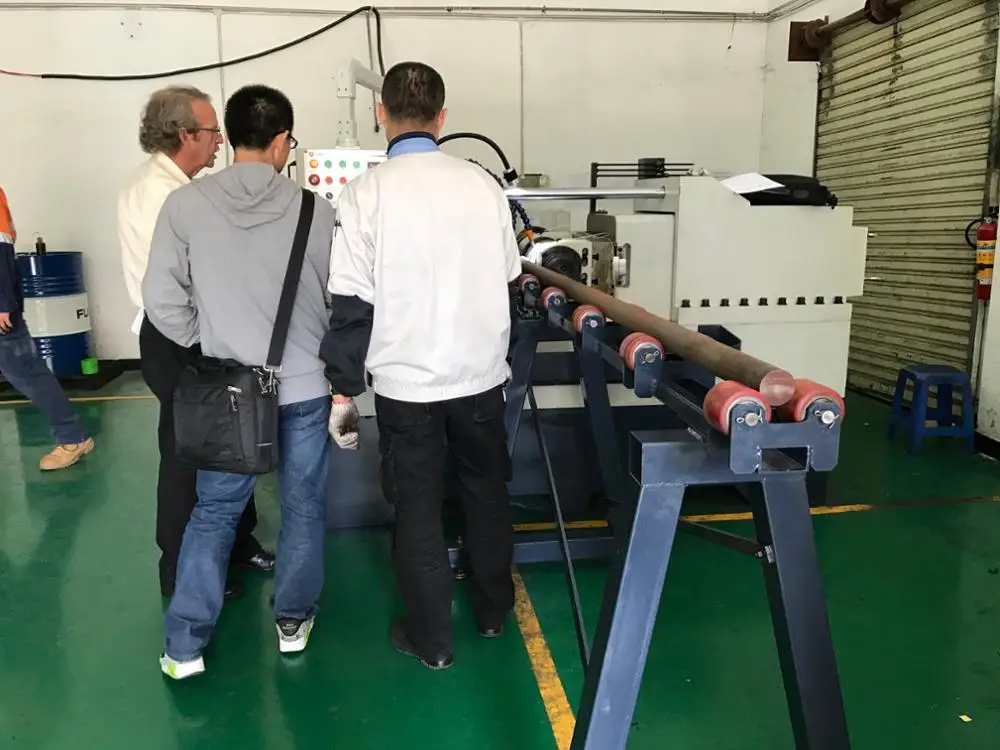

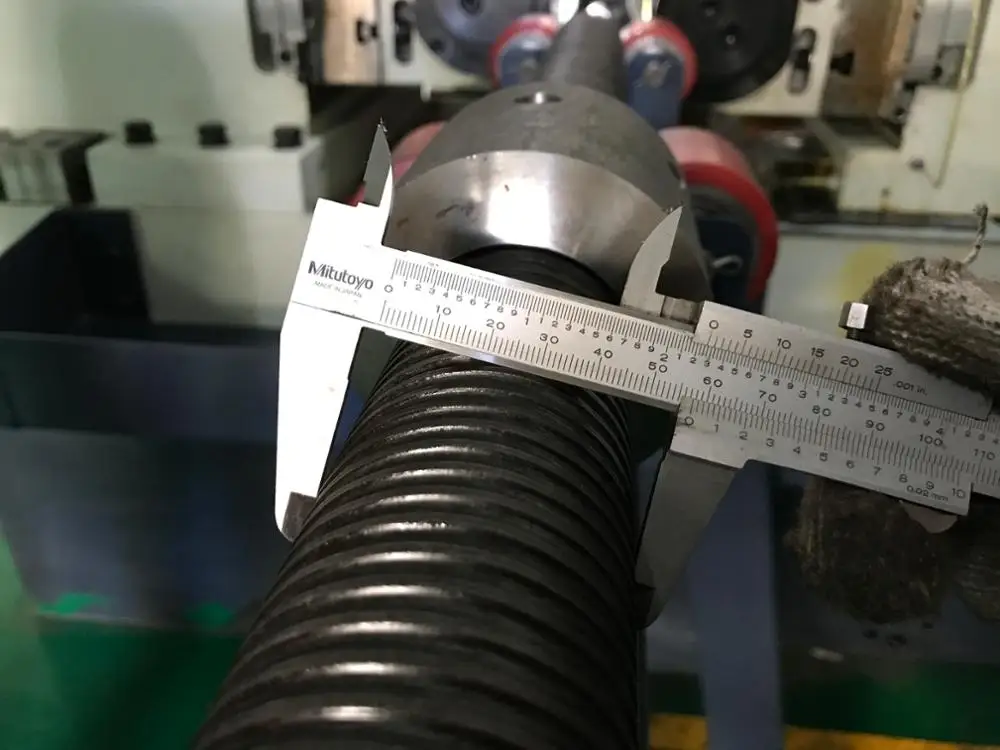

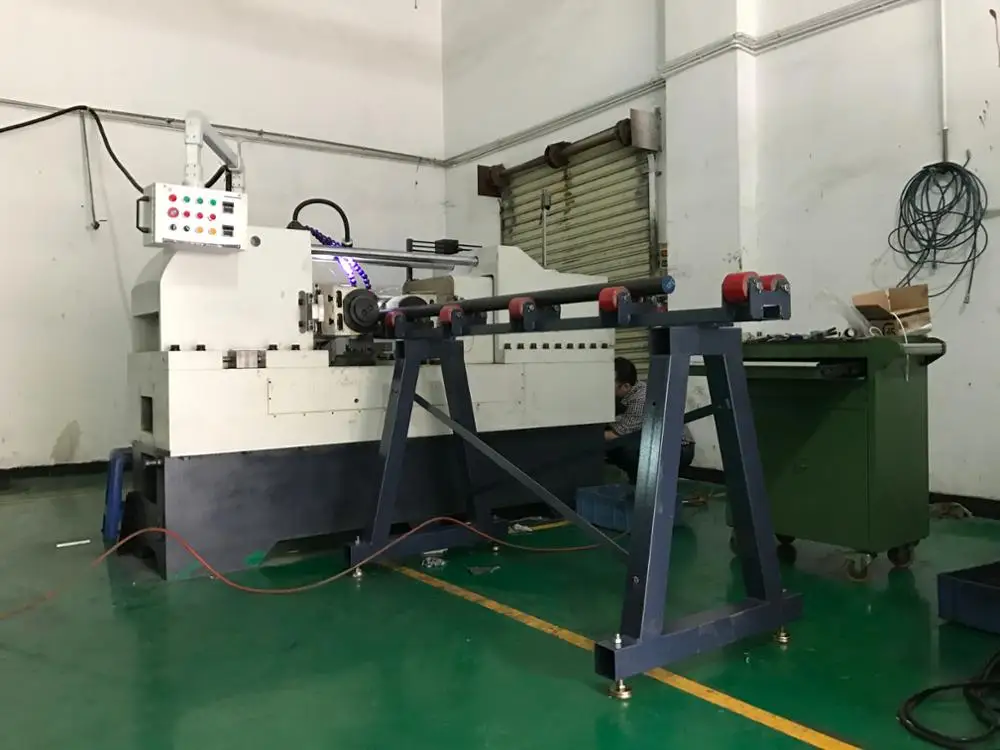

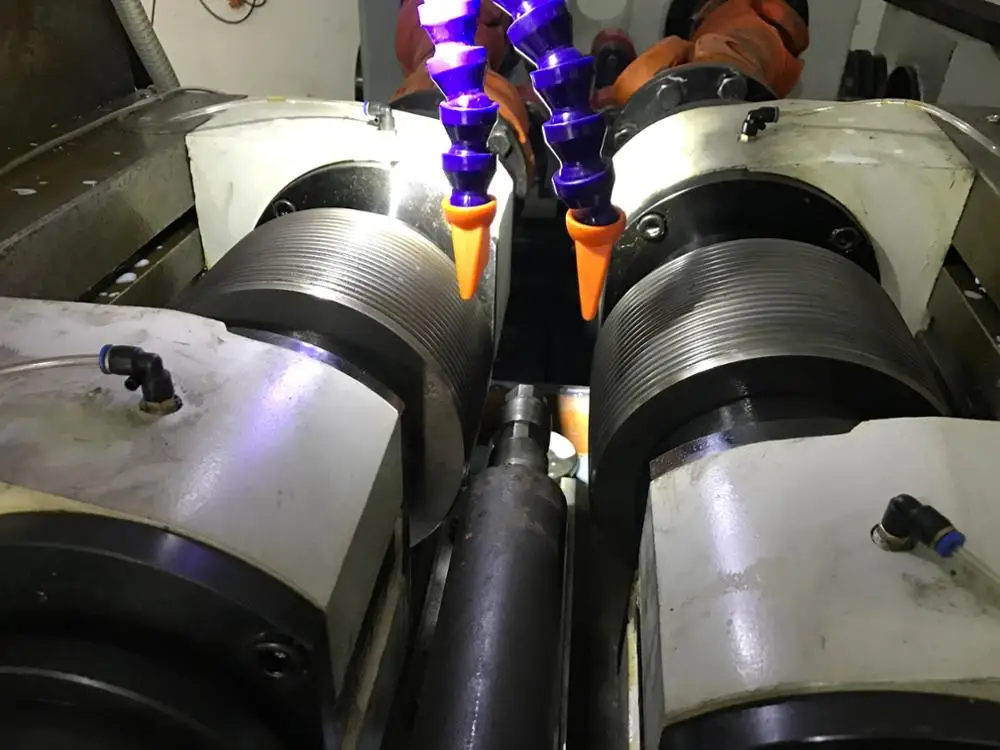

IMG_1629IMG_1642IMG_1647IMG_1656IMG_1630IMG_1658IMG_1655
