Quick Details

  • Condition: New
  • Application: Threaded rods, bolts, screws, anchor bolts
  • Production Capacity: 10-120 Pcs/min
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOBEST
  • Model Number: TB-3TGT
  • Voltage: 3-380V 50HZ
  • Power(W): 1470W
  • Dimension(L*W*H): 650*600*750mm
  • Weight: 440(KG)
  • Certification: ISO 9001-2008, CE
  • Warranty: 1 year for threaded rods making machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Threaded rods making machine screw bolt making machine price
  • Color: Green(or customised)
  • Work piece diameter: 2-10/mm
  • Range of pitch rolled: 0.4-1.5P
  • Length of thread rolled: no limited
  • Spindle speed: 50rpm
  • Machine motor: 2HP
  • Outside diameter of rolling die: 100mm
  • Inside diameter of rolling die(keyway): 50.5mm
  • Thickness of rolling die: 30mm

Packaging & Delivery

Packaging Details 1. threaded rods making machine is packed in wooden case
2. neutral package can be accepted
Delivery Time Shipped in 15 days after payment
Product Description

Product Application

1. Working for in feed and thru feed shafts, threaded rods, worm screws.
2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.
5. Fully automatic production line.

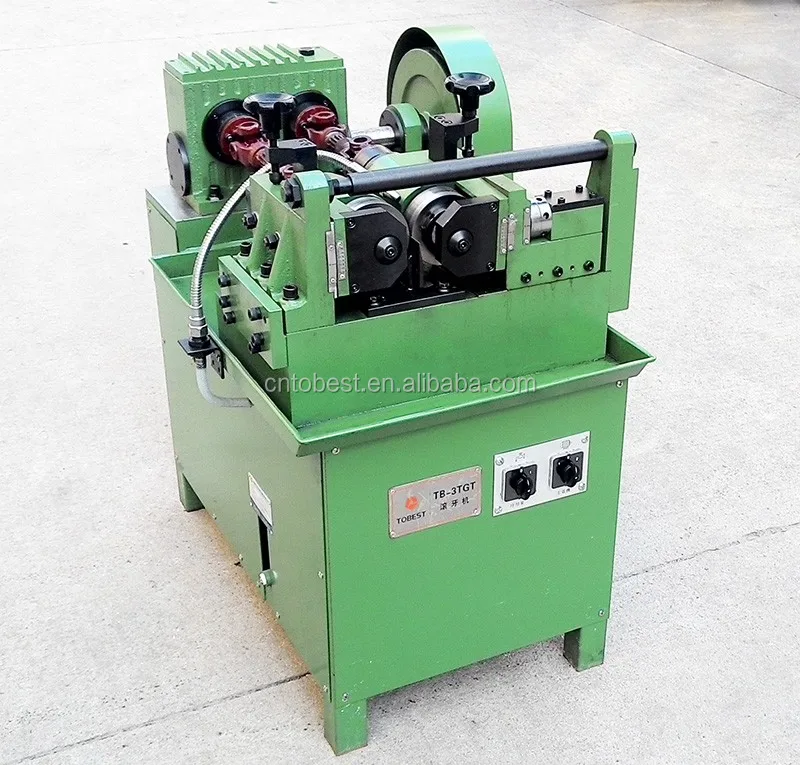

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-3TGT
Diameter for the threads rolled
φ2-φ10/mm
Range of pitch rolled
0.4-1.5P
Length of thread rolled
In feed or Thru feed
Spindle speed
50rpm
Outside diameter of rolling die
φ100mm
Inside diameter of rolling die(keyway)
φ50.5mm
Thickness of rolling die
30mm
Center distance between die spindles
90-130mm
Machine motor
2HP
Distance from the lathe bed to rolling die
85mm
Supply voltage
380V

Main Features

1) Rolling-through and fixed mode for option.
2) Under fixed rolling mode, adopt eccentric-type process for thread extrusion.
3) Adopt cardan joint for connection and drove by worm gear and rod to improve the product quality.
4) Specially for set screws and fastening screws.
5) Equipped with additional vibration disc to realize automatic production so that manpower can be saved effectively.

Detailed Images

Machine Parts

Name: Thread Rolling Dies

Brand: TOBEST

Original: China mainland

High precision, stability and high durability.

Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.
BSW, UNC, UNF, ISO Standard.
OD: 100 mm
ID: 50.5 mm
Thickness: 30 mm

Main Features

Name: Main Shafts 50.5 mm Diameter
Brand: TOBEST
Original: China

Made in TOBEST factory, and the material is Steel No.45.

Through heat treatment and stress testing.
High stability and high durability.

Machine Parts

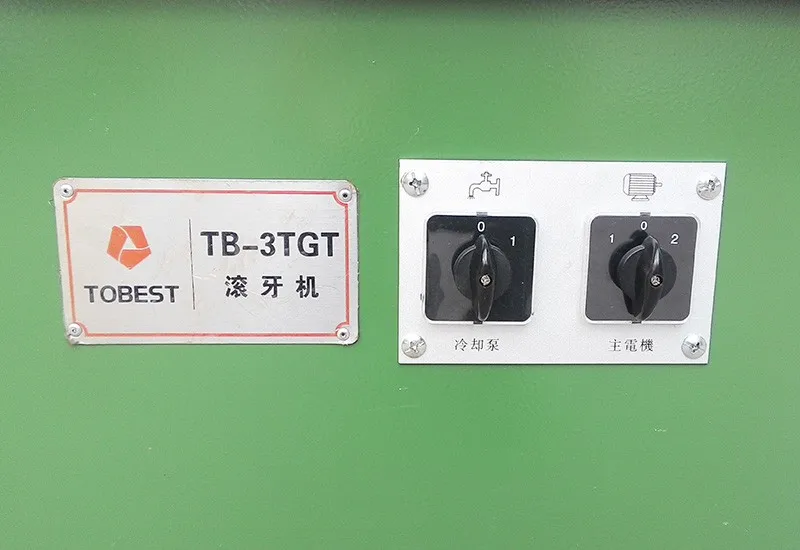

Name: Power Switch
Original: Taiwan
Easy to operate and change.

CE Certificate.

Main Features

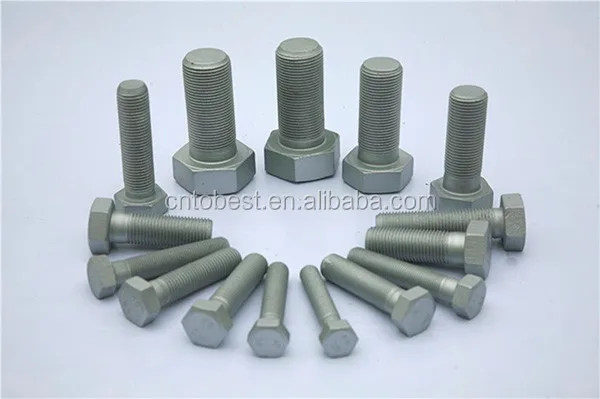

Name: Diamond thread parts
Brand: TOBEST
Original: China
Diamond thread parts made by TB-3TGT.

Perfect and high precision.

BSW, UNC, UNF & ISO Thread is also ok.


Related Products

Auto TB-3T

91.8% Response Rate

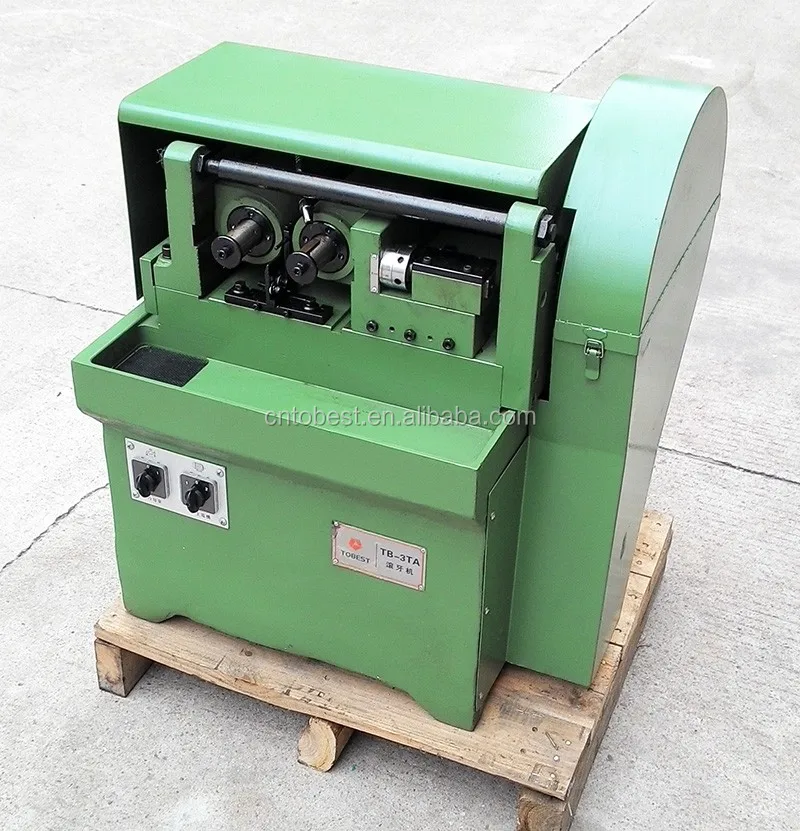

TB-3TA

90% Response Rate

TB-20

91.8% Response Rate

Packing & Delivery
Packaging
Size
88 (L) * 76 (W) * 78 (H) cm
Weight
450 KG

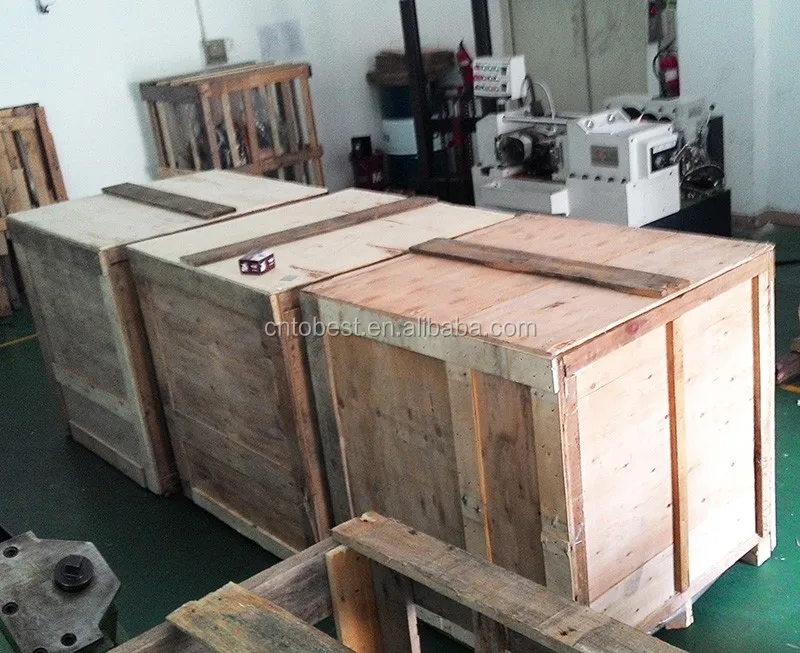

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.

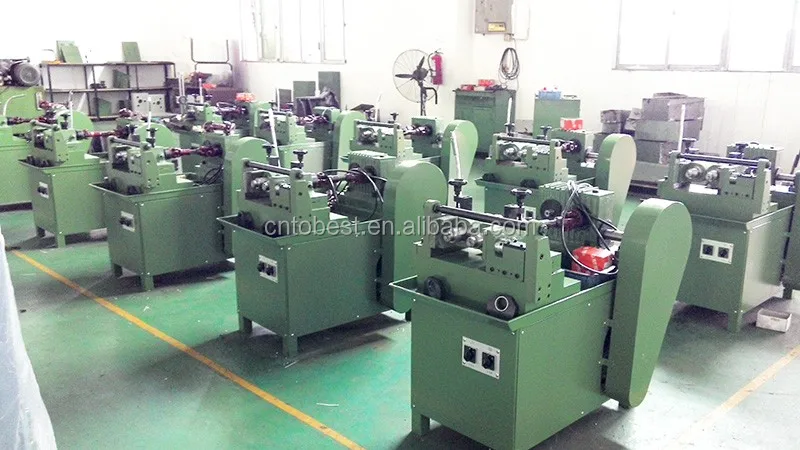

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
