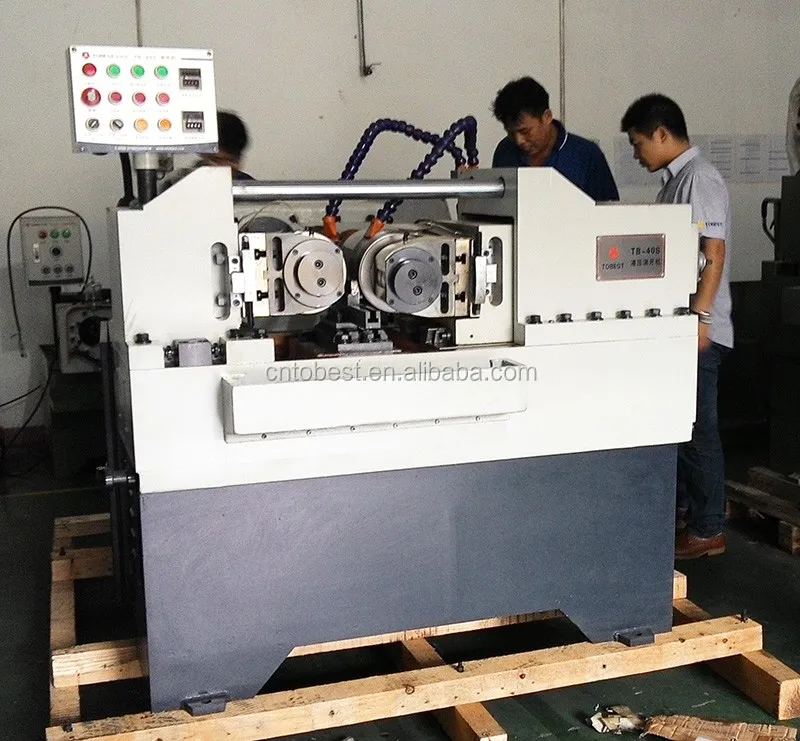

High Precision 2 Rollers thread rolling machine steel bar

  • 1 - 1 Sets
    $26,000.00
  • >=2 Sets
    $25,000.00
Model Number:
TB-50ST
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Advertising Company
Condition:
New
Application:
Eye bolt, anchor bolts, rivet, etc
Production Capacity:
5-25(pcs/min)
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Voltage:
3-380V 50HZ
Power(W):
7350W
Dimension(L*W*H):
1850*1910*1380mm
Weight:
3600(KG)
Certification:
ISO 9001-2008, CE
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support
Name:
Threading machine hydraulic motor thread machine for threaded rod
Work piece diameter:
12-100/mm
Range of pitch rolled:
1.0-8.0P
Length of thread rolled:
In feed and Thru feed for option
Outside diameter of rolling die:
145-235mm
Inside diameter of rolling die:
75mm
Thickness of rolling die:
120mm
Max rolling pressure:
40T
Bearing brand:
NSK,UBC
Supply Ability
Supply Ability:
80 Set/Sets per Month it is for threading machine
Packaging & Delivery
Packaging Details
1. threading machine is packed in wooden case
2. neutral package can be accepted
Port
shenzhen
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

Product Application

1. Used for making thread on bolts, screws, fasteners, threaded rods, etc.
2. Used widely in construction, motorcycle, car industry.
3. Work for products : Max.diameter is 100 mm, and Max. Length is 6 m.
4. Can be designed with automatic feeding devices.

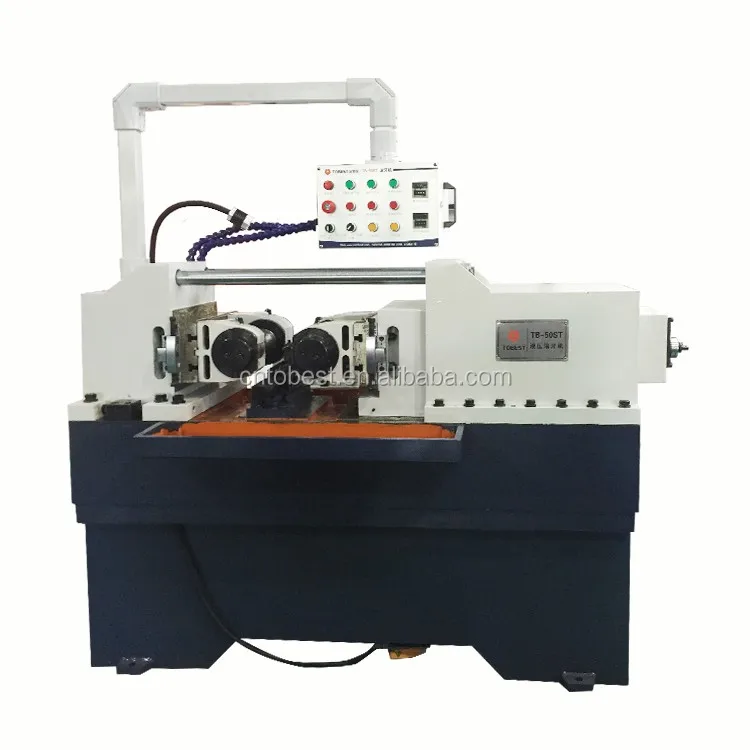

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-50S
Diameter for the threads rolled
φ12-φ100/mm
Range of pitch rolled
1.0-8.0P
Max.length of thread rolled
In feed or Thru feed
Spindle speed
16/25/40/63rpm (variable speed)
Outside diameter of rolling die
φ145-φ235mm
Inside diameter of rolling die(keyway)
φ75mm
Thickness of rolling die
120mm
Distance between the roller shaft
140-320mm
Output(pcs/min)
4-25(pcs/min)
Main power motor
10HP
Hydraulic motor
2HP
Max rolling pressure
40T
Supply voltage
380V

Main Features

1) High precision, stability and high durability with more than 10 years.
2) In feed and thru feed can be realized on one machine.
3) Automatic feeding devices can be installed on machine.
4) Rolling time and speed can be adjustable.
5) Used widely for making 6 m threaded rods, lead screws, etc.
6) ISO9001-2008, CE.

Detailed Images

Machine Parts

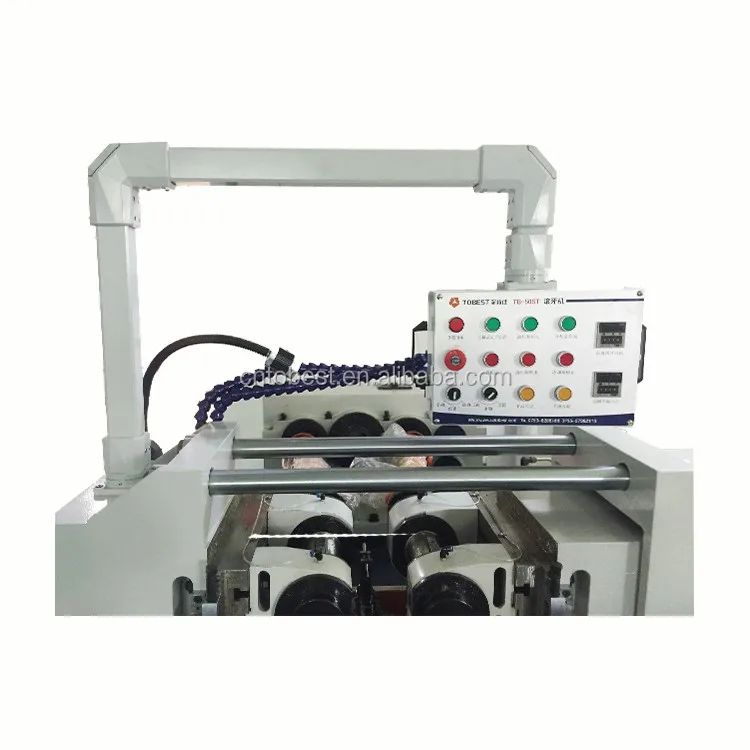

Name: Control Box TB-50S

Brand: TOBEST

Original: China

Use importing components from Taiwan.
Safe control with emergency button.

CE Certificate.

Main Features

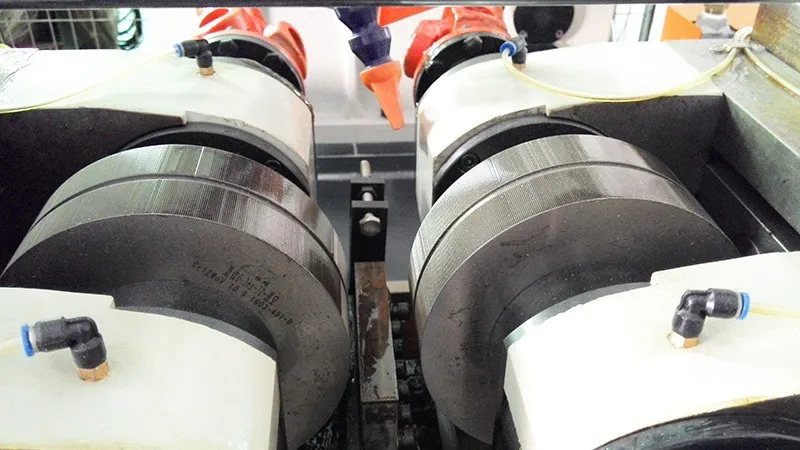

Name: Thread Rolling Dies
Brand: TOBEST
Original: China Mainland
High precision, stability and high durability.
Life time is usually 50-100 thousand pieces.
Hardness is about 58-60 HRC.

Material:SKD11, DC53, D2

Machine Parts

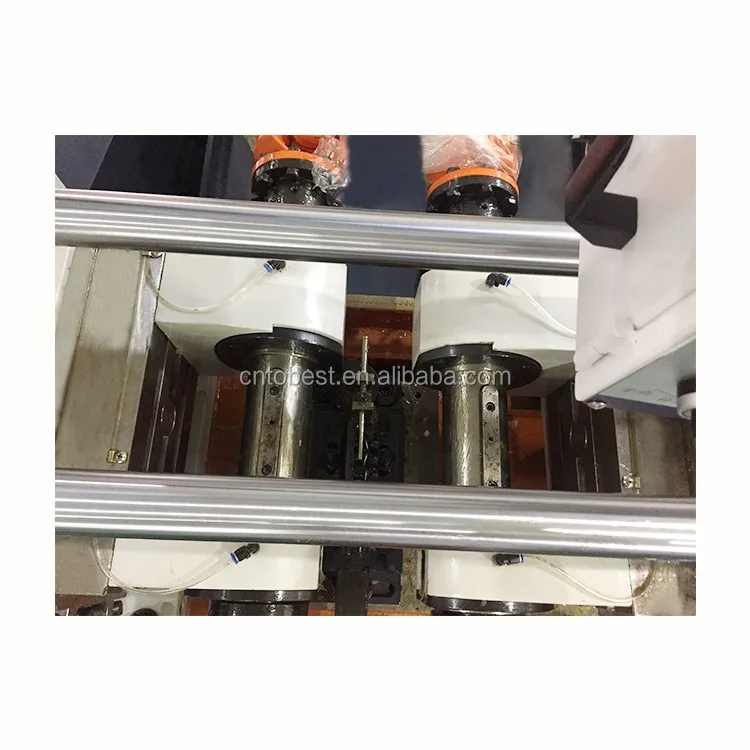

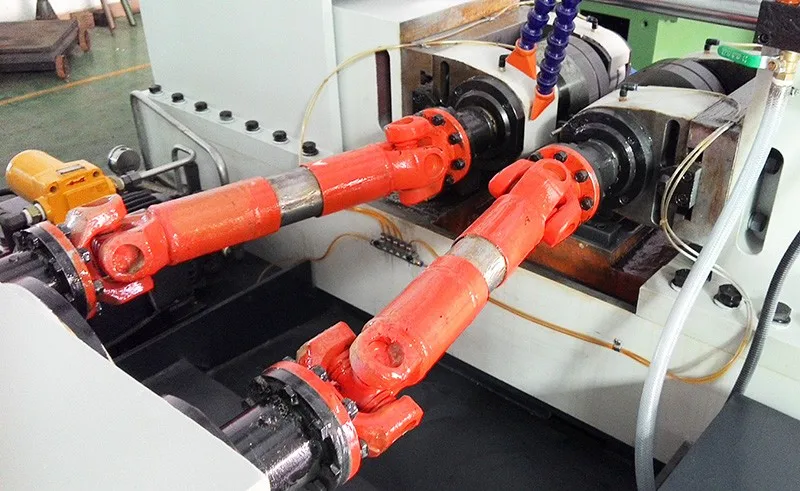

Name: Main Spindle 75mm diameter
Brand:Dong Feng
Original: Hong Kong
High tensile performance
Used widely for heavy cars and machines

Main Features

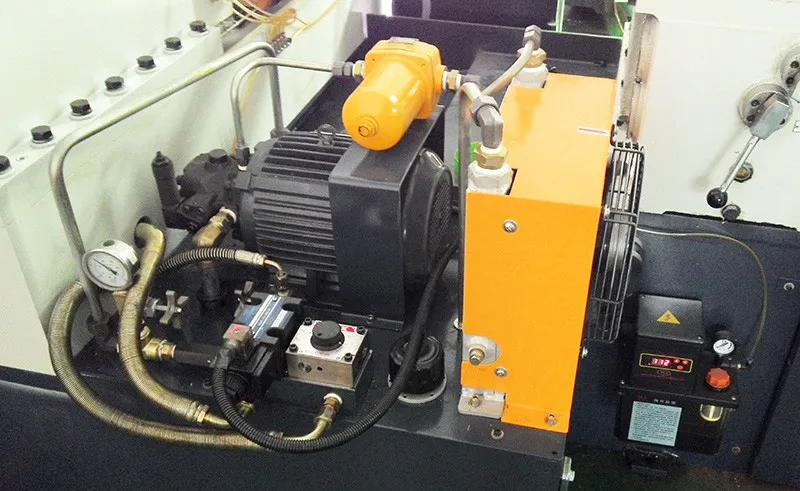

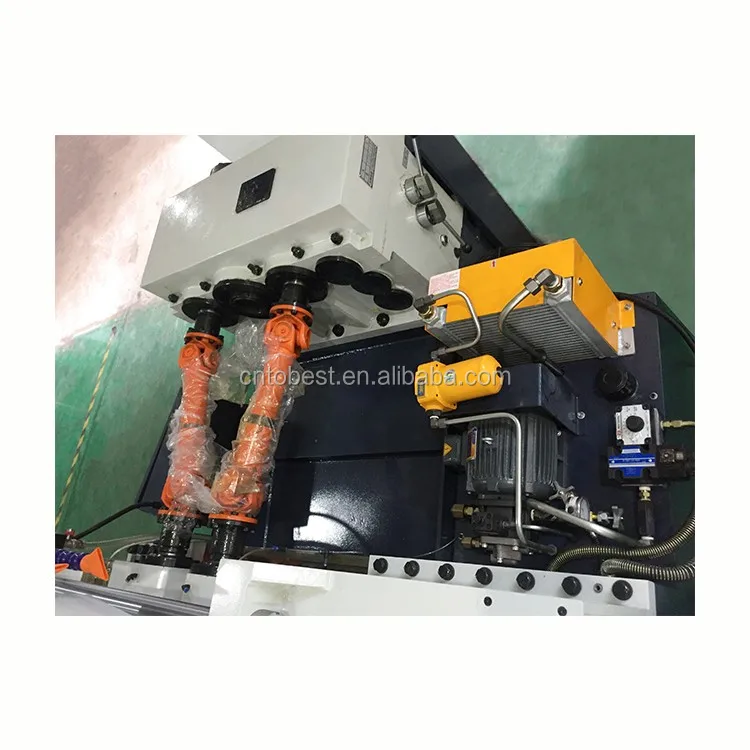

Name: Hydraulic Motor
Brand: GROSCHOPP
Original: America
Yellow color design with long life time
Have safety protection cover
High quality with good stability

Related Products

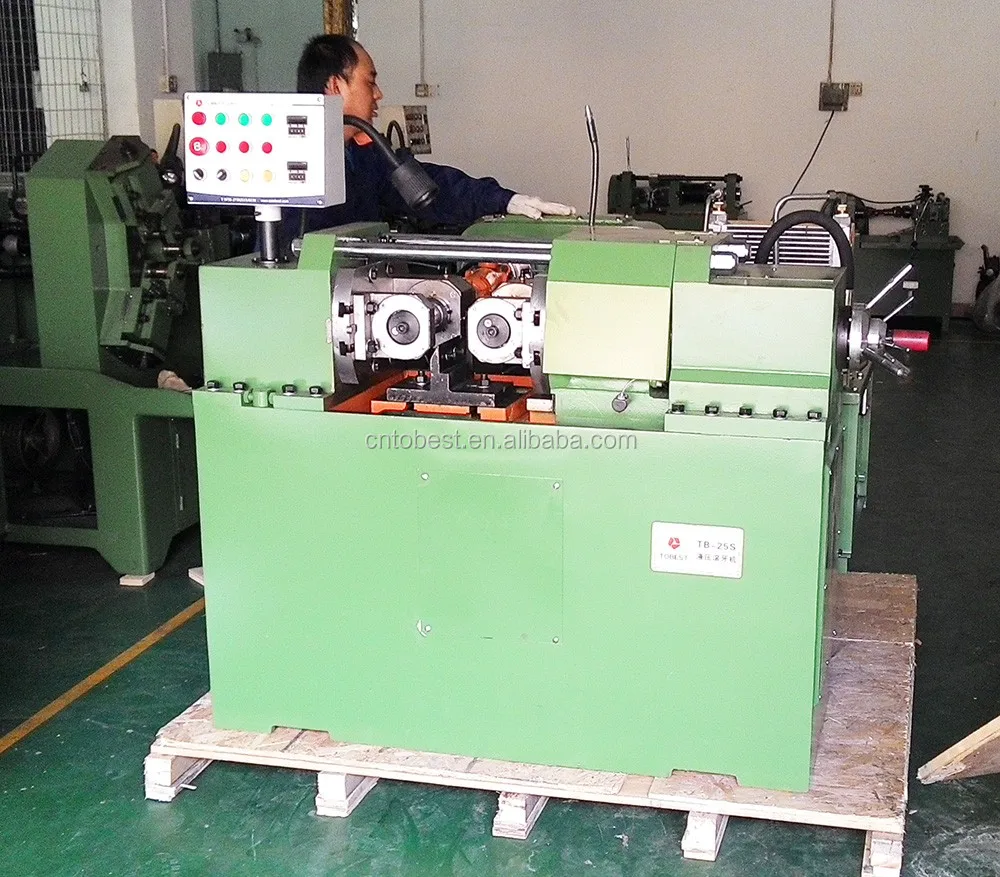

TB-25S

91.8% Response Rate

TB-30S

90% Response Rate

TB-40S

91.8% Response Rate

Packing & Delivery
Packaging
Size
210 (L) * 195 (W) * 150 (H) cm
Weight
3.6 T

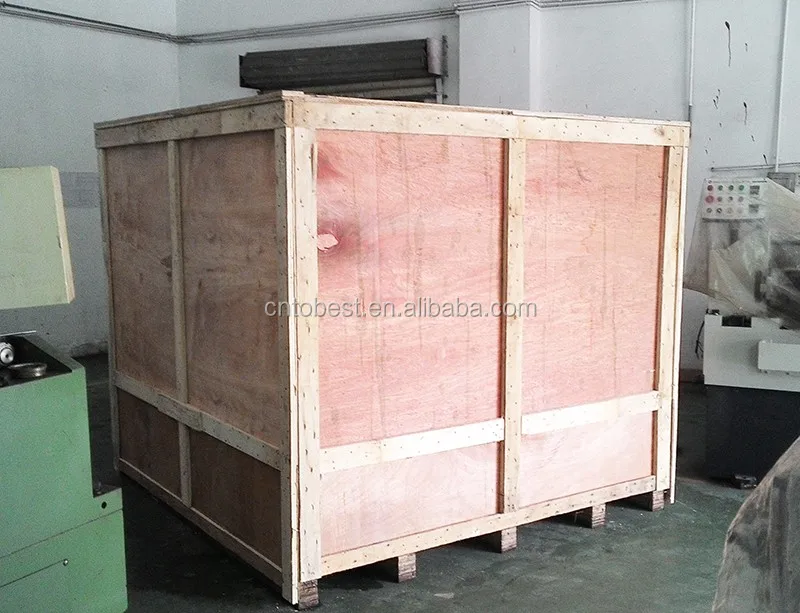

Packaging Details
The normal package is wooden box(Size: 210*195*150 cm L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
