Quick Details

  • Condition: New
  • Application: Bolts, screws, threaded rods, etc
  • Production Capacity: 4-25(pcs/min)
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOBEST
  • Model Number: TB-50S
  • Voltage: 3-380V 50HZ
  • Power(W): 7350W
  • Dimension(L*W*H): 1850*1910*1380mm
  • Weight: 3600(KG)
  • Certification: ISO 9001-2008, CE, ISO 9001-2008, CE
  • Warranty: 1 Year for hex bolt making machine, 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Hex bolt making machine metric threaded rods making machine
  • Color: Green(or according to your need)
  • Work piece diameter: 5-100/mm
  • Range of pitch rolled: 1.0-5.0P
  • Outside diameter of rolling die: 145-235mm
  • Inside diameter of rolling die: 75mm
  • Thickness of rolling die: 120mm
  • Hydraulic motor: 2HP

Packaging & Delivery

Packaging Details 1. hex bolt making machine is packed in wooden case
2. neutral package can be accepted
Delivery Time Shipped in 20 days after payment
Product Description

Product Application

1. Used for making thread on bolts, screws, fasteners, threaded rods, etc.
2. Used widely in construction, motorcycle, car industry.
3. Work for products : Max.diameter is 100 mm, and Max. Length is 6 m.
4. Can be designed with automatic feeding devices.

5. Ball screw production line.

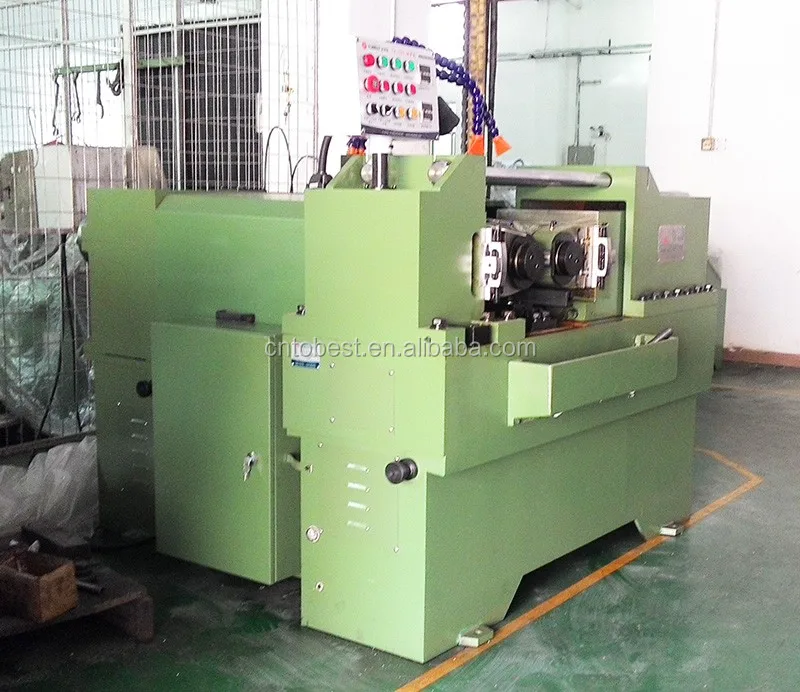

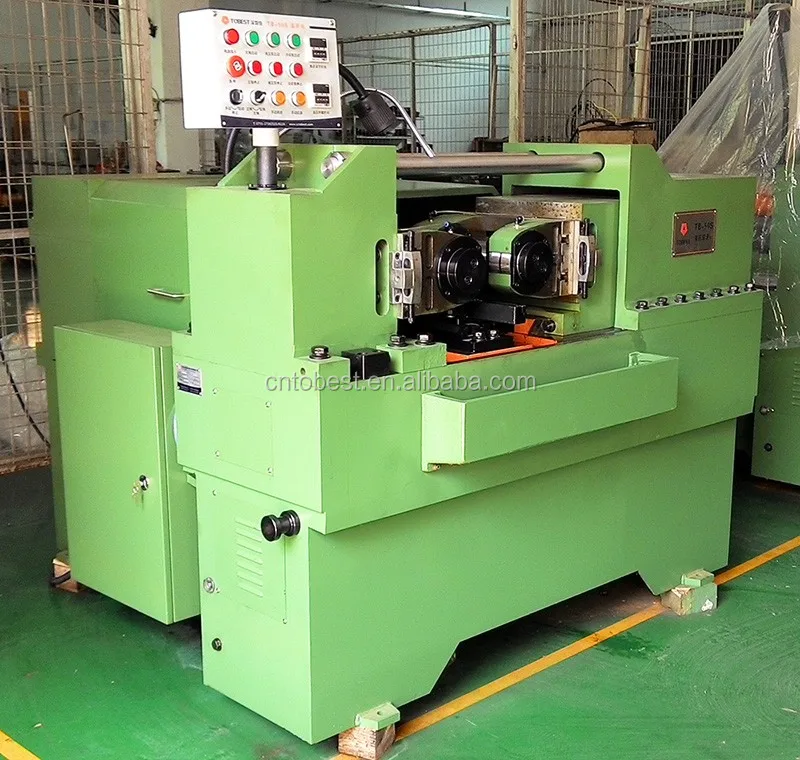

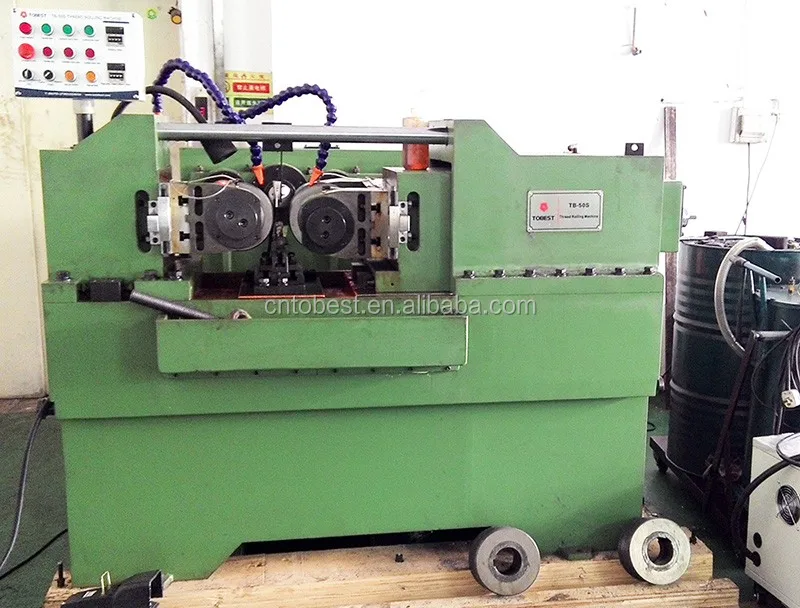

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-50S
Diameter for the threads rolled
φ5-φ100/mm
Range of pitch rolled
0.8-8.0P
Max.length of thread rolled
In feed or Thru feed
Spindle speed
16/25/40/63rpm (variable speed)
Outside diameter of rolling die
φ145-φ235mm
Inside diameter of rolling die(keyway)
φ75mm
Thickness of rolling die
120mm
Distance between the roller shaft
140-320mm
Output(pcs/min)
4-25(pcs/min)
Main power motor
10HP
Hydraulic motor
2HP
Max rolling pressure
40T
Supply voltage
380V

Main Features

1) High precision, stability and high durability with more than 10 years.
2) In feed and thru feed can be realized on one machine.
3) Automatic feeding devices can be installed on machine.
4) Rolling time and speed can be adjustable.
5) Used widely for making 6 m threaded rods, lead screws, etc.
6) ISO9001-2008, CE.

Detailed Images

Machine Parts

Name: Control Box

Brand: TOBEST

Original: China

Use importing components from Taiwan.
Safe control with emergency button.

CE Certificate.

Main Features

Name: Thread Rolling Dies
Brand: TOBEST
Original: China Mainland
High precision, stability and high durability.
Life time is usually 50-100 thousand pieces.
Hardness is about 58-60 HRC.

Machine Parts

Name: Main Spindle
Brand: Dong Feng
Original: Hong Kong
High tensile performance
Used widely for heavy cars and machines

Long lifetime more than 10 Years.

Main Features

Name: Hydraulic System
Brand: GROSCHOPP
Original: America
Yellow color design with long life time
Have safety protection cover
High quality with good stability

Related Products

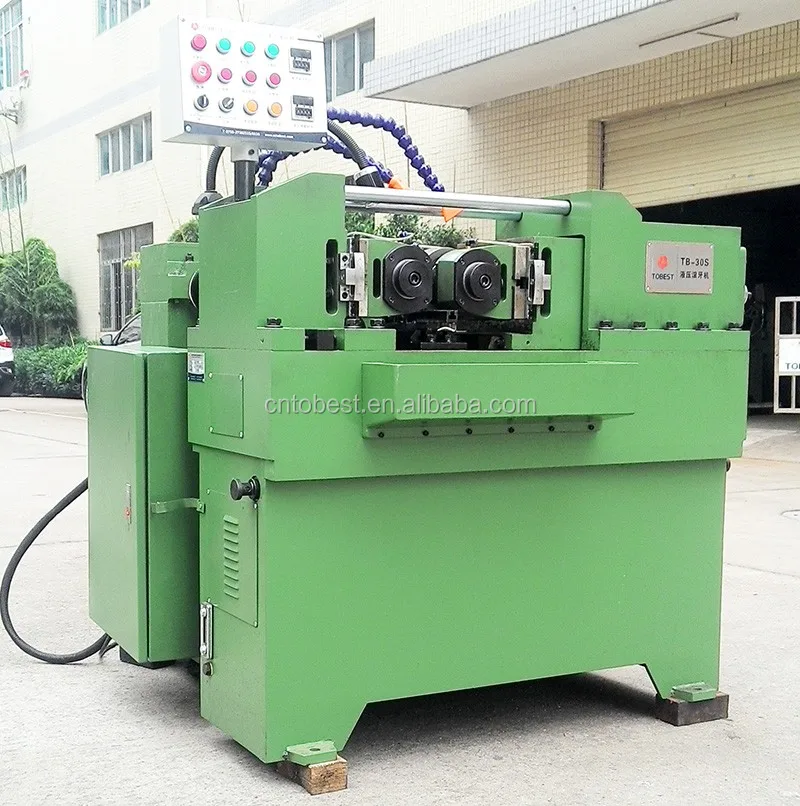

TB-30S

91.8% Response Rate

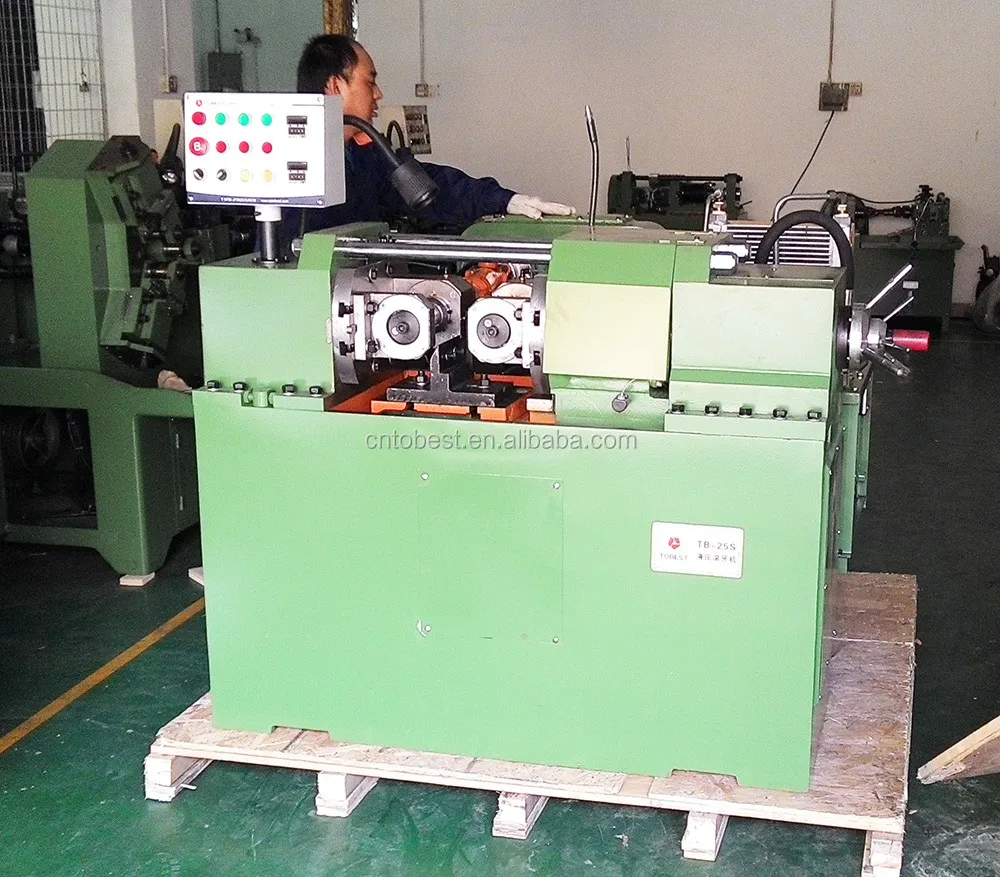

TB-25S

98% Response Rate

TB-40S

91.8% Response Rate

Packing & Delivery
Packaging
Size
210  (L) * 195 (W) * 150 (H) cm
Weight
3.6 T

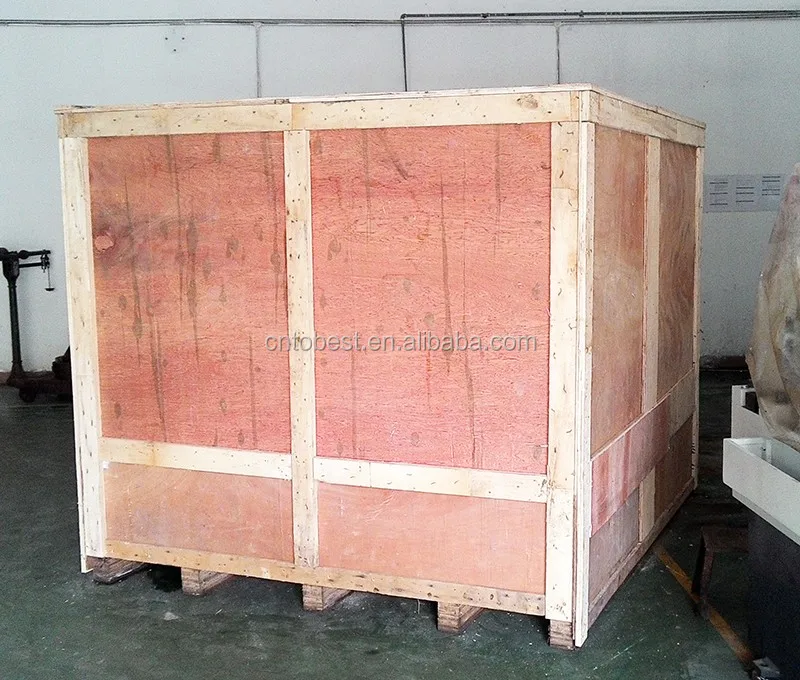

Packaging Details
The normal package is wooden box(Size: 210*195*150 cm L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
