Quick Details

  • Condition: New
  • Application: Bolt, screw, anchor bolt, etc
  • Production Capacity: 4-25(pcs/min)
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOBEST
  • Model Number: TB-20
  • Voltage: 3-380V 50HZ
  • Power(W): 2205W
  • Dimension(L*W*H): 1000*1000*1200mm
  • Weight: 600(KG)
  • Certification: ISO 9001-2008, CE
  • Warranty: 1 year for anchor bolt threading machine, 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item: High speed thread rolling machine anchor bolt threading machine
  • Color: Green(or according to your need)
  • Work piece diameter: 4-16/mm
  • Range of pitch rolled: 0.4-2.0P
  • Max.length of thread rolled: In feed and thru feed for option
  • Inside diameter of rolling die: 50.5mm
  • Outside diameter of rolling die: 100-118mm
  • Thickness of rolling die: 50mm
  • Bearing brand: NSK,UBC

Packaging & Delivery

Packaging Details 1. anchor bolt threading machine is packed in wooden case
2. neutral package can be accepted
Product Description

Product Application

1. Working for 1-3 m long threaded rods, or longer.
2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.

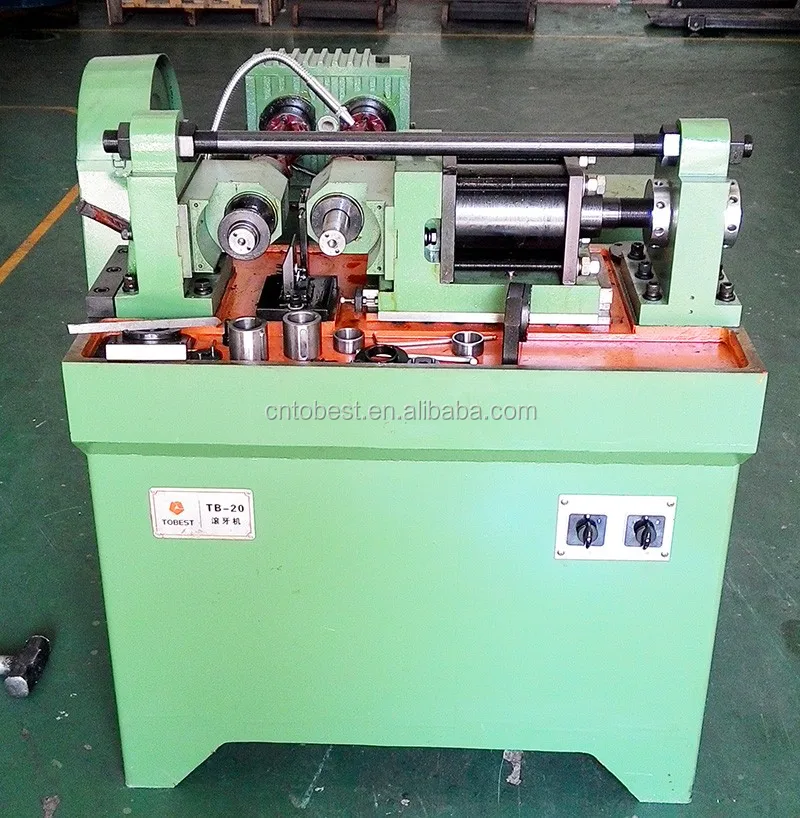

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-20
Diameter for the threads rolled
φ4-φ16/mm
Range of pitch rolled
0.4-2.0P
Length of thread rolled
In feed or Thru feed
Spindle speed
16/25/40/63rpm (variable speed)
Outside diameter of rolling die
φ100-φ118mm
Inside diameter of rolling die(keyway)
φ50.5mm
Thickness of rolling die
50mm
Range of distance between the roller shaft
100-135mm
Output(pcs/min)
4-25(pcs/min)
Main power motor
3HP
Hydraulic motor
2HP
Max rolling pressure
6T
Supply voltage
380V

Main Features

1) High precision, stability and high durability with more than 10 years.
2) In feed and thru feed can be realized on one machine.
3) Automatic feeding devices can be installed on machine.
4) Rolling time and speed can be adjustable.
5) ISO9001-2008, CE.

Detailed Images

Machine Parts

Name: Main Shafts

Brand: Dong Feng

Original: Hong Kong

Diameter of spindle: 50.5 mm.
Used for heavy trucks.
High stability and durability.

Main Features

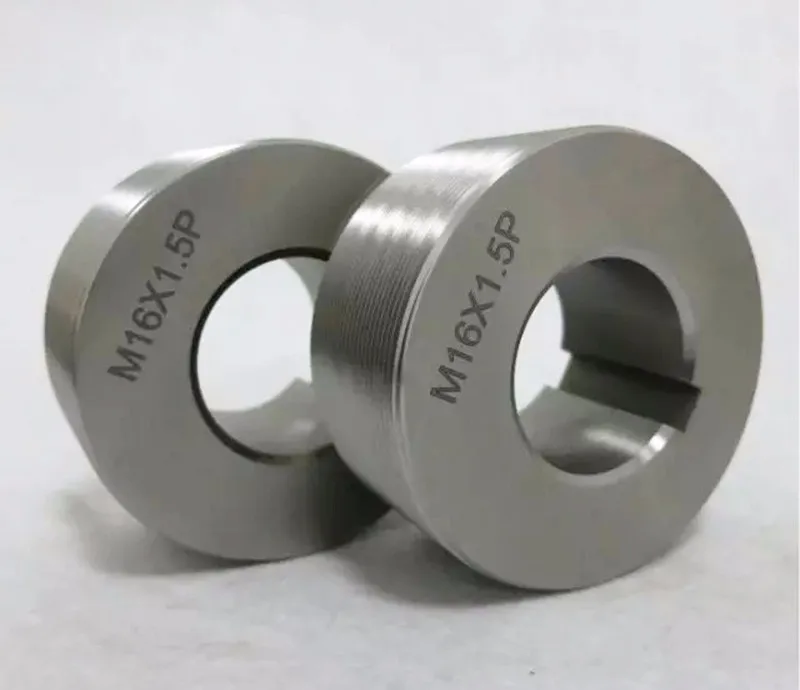

Name: Thread Rolling Dies
Brand: TOBEST
Original: China
High precision, stability and high durability.
Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.

Related Products

TB-20S

91.8% Response Rate

TB-25S

98% Response Rate

TB-30S

93% Response Rate

Packing & Delivery
Packaging
Size
110(L) * 110 (W) * 130 (H)
Weight
550KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
