Quick Details

  • Condition: New
  • Application: Bolt, screws, threaded rods, etc
  • Production Capacity: 4-20 pcs/min
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOBEST
  • Model Number: TB-25S
  • Voltage: 3-380V 50HZ
  • Power(W): 4042W
  • Dimension(L*W*H): 1500*1380*1140mm
  • Weight: 1700(KG)
  • Certification: ISO 9001-2008, CE
  • Warranty: 1 Year for thread trimming machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Auto lathe machine auto thread rolling machine thread trimming machine
  • Work piece diameter: 4-42/mm
  • Range of pitch rolled: 1.0-2.5P
  • Length of thread rolled: In feed and thru feed for option
  • Outside diameter of rolling die: 135mm-170mm
  • Inside diameter of rolling die: 54mm
  • Thickness of rolling die: 110mm
  • Hydraulic motor: 3HP
  • Max. feed pressure: 15T
  • Spindle speed: 36/47/60/78rpm

Packaging & Delivery

Packaging Details 1. thread trimming machine is packed in wooden case
2. neutral package can be accepted
Delivery Time Shipped in 20 days after payment
Product Description

Product Application

1. Working for 1-3 m long threaded rods, or longer.
2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.

5. Fully automatic production line.

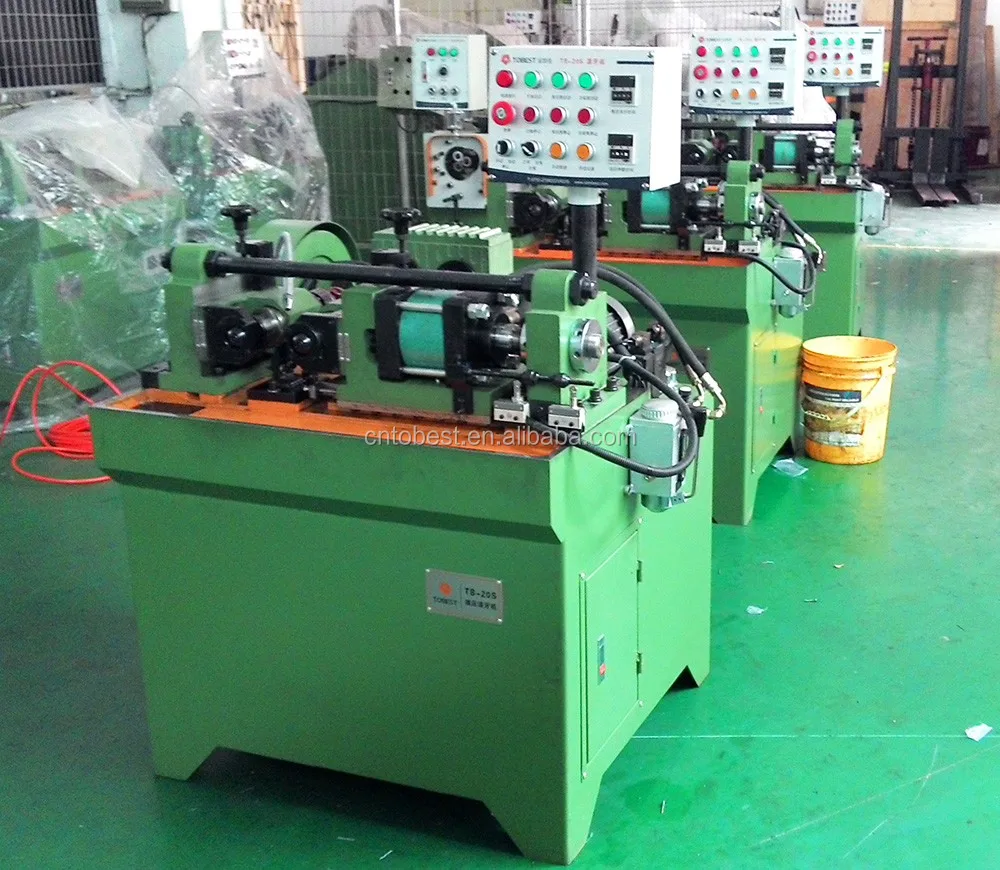

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-25S
Diameter for the threads rolled
φ4-42/mm
Range of pitch rolled
0.7-3.5P
Length of thread rolled
In feed or Thru feed
Spindle speed
36/47/60/78rpm
Outside diameter of rolling die
φ135mm-φ170mm
Inside diameter of rolling die(keyway)
φ54mm
Thickness of rolling die
110mm
Min.center distance between die spindles
120mm
Max.center distance between die spindles
240mm
Output(pcs/min)
5-35 pcs/min
Machine motor
5.5HP
Hydraulic motor
3HP
The highest feed pressure
15T

Main Features

1) High precision, stability and high durability with more than 10 years.
2) In feed and thru feed can be realized on one machine.

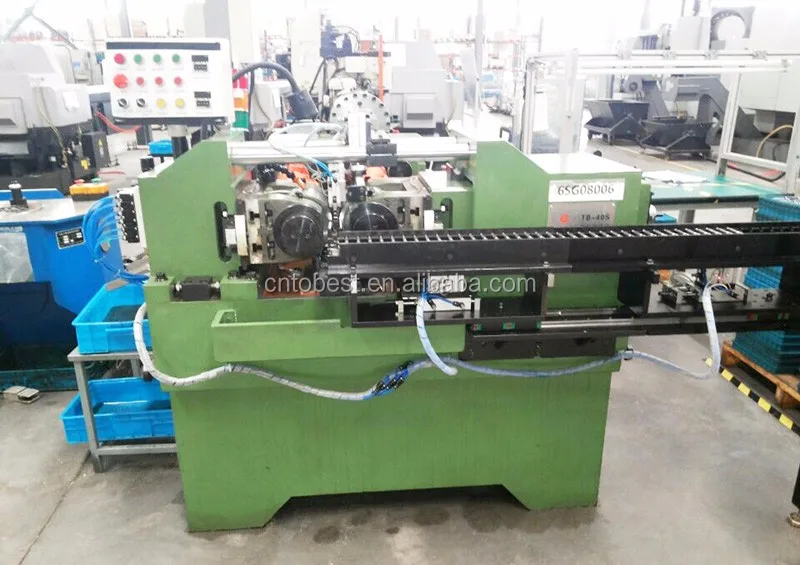

3) Automatic feeding devices can be installed on machine.
4) Rolling time and speed can be adjustable.
5) ISO9001-2008, CE.

Detailed Images

Machine Parts

Name: Control Box

Brand: TOBEST

Original: China Mainland

Simple design, easy to operate.
Safe, with emergency stop button.
Rolling time and speed can be adjustable.

Main Features

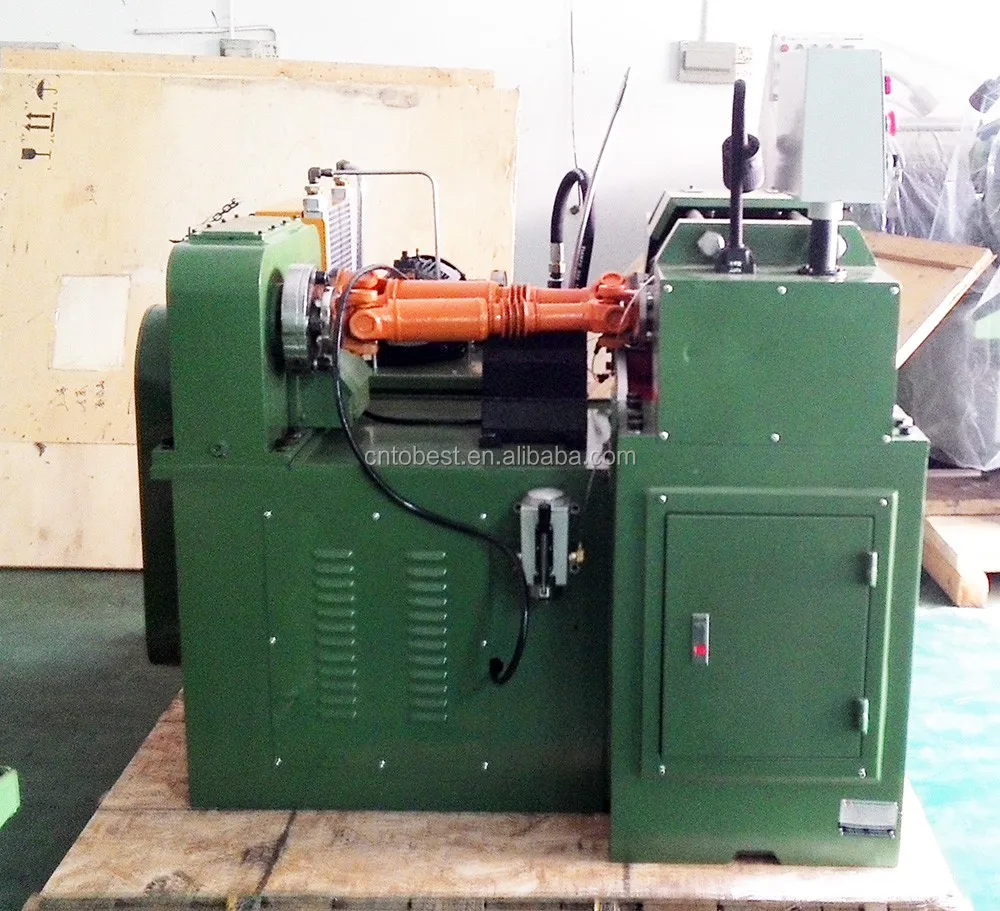

Name: Transmission Shafts
Brand: Dong Feng
Original: Hong Kong
Diameter of spindle: 54 mm.
Used for heavy trucks.
High stability and durability.

Machine Parts

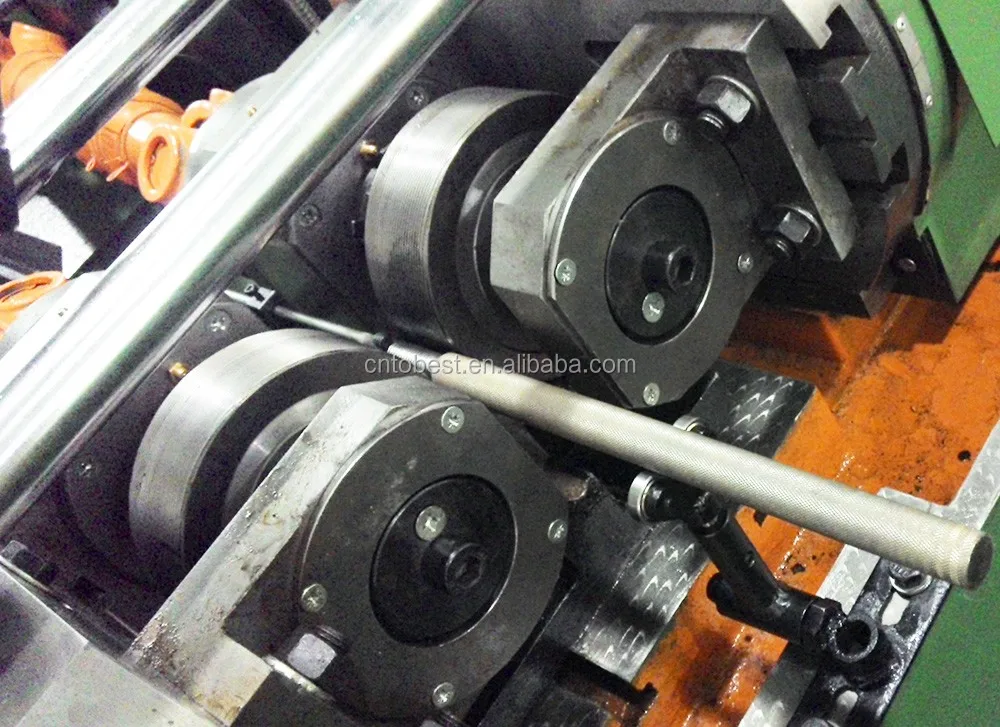

Name: Thread Rolling Dies
Brand: TOBEST
Original: China
High precision, stability and high durability.
Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.

Main Features

Name: Hydraulic System
Brand: GROSCHOPP
Original: America
Power: 3 HP, 3 P-380 V, 50/60 Hz.
Installed with cooling fan.

Related Products

TB-20S

91.8% Response Rate

TB-30S

96% Response Rate

TB-40S

92% Response Rate

Packing & Delivery
Packaging
Size
160 (L) * 148 (W) * 125 (H) cm
Weight
1.8 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.

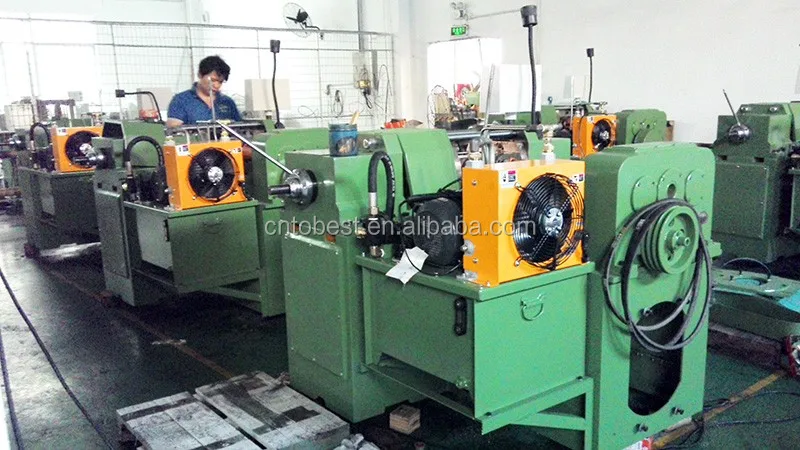

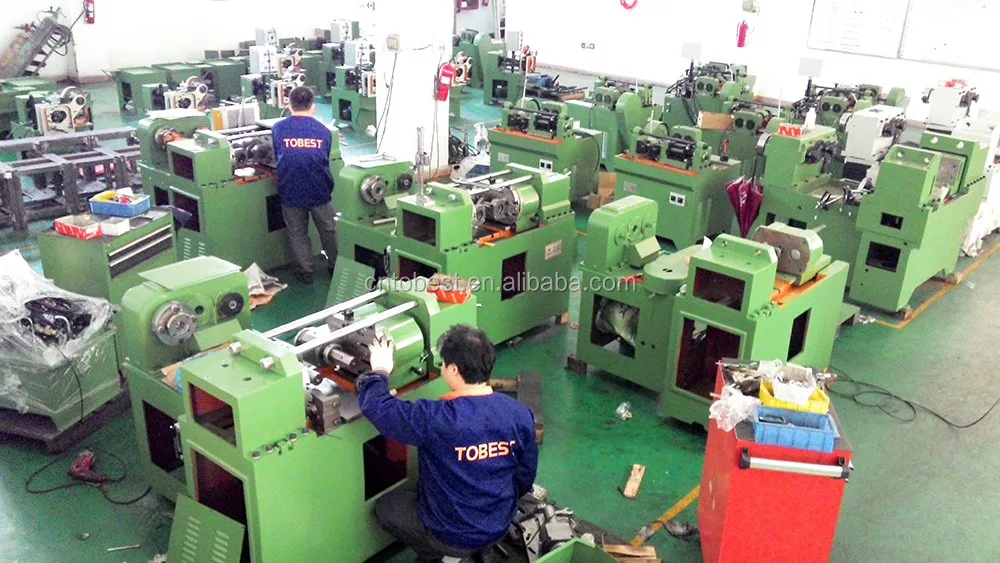

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
