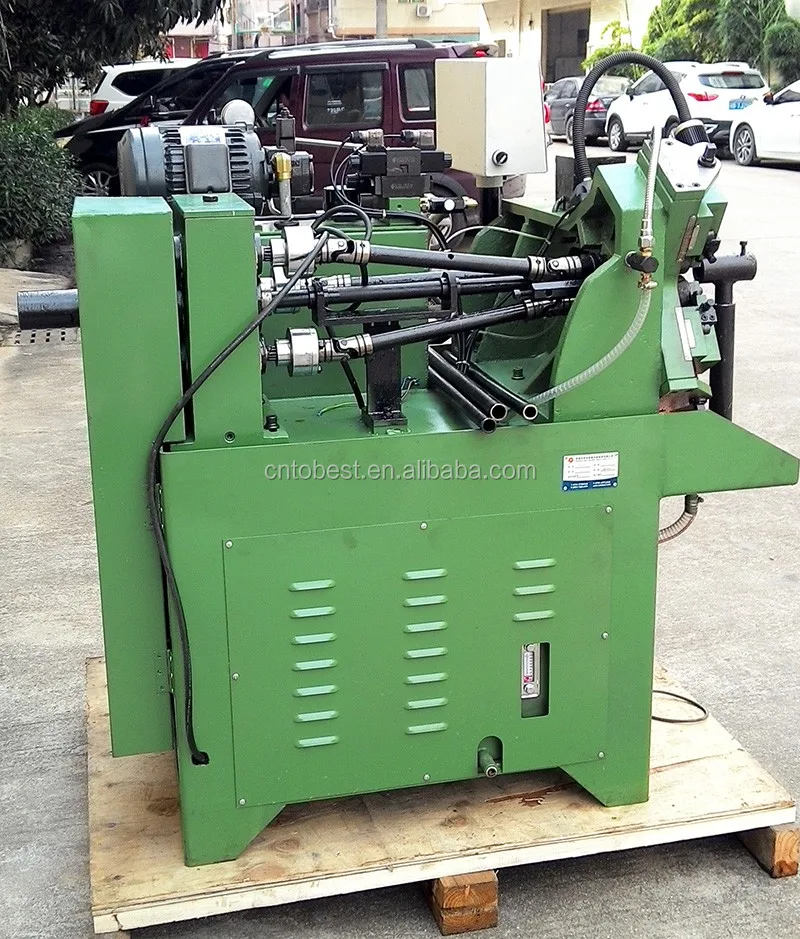

Brass pipe threading machine hollow tube thread making machine

FOB Reference Price:Get Latest Price
US $8,890-9,890 / Sets | 1 Set/Sets it is for brass pipe threading machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
connectors, auto parts, pipe fittings
Production Capacity:
4-25(pcs/min)
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-30A
Voltage:
3-380V 50HZ
Power(W):
2205W
Dimension(L*W*H):
1180*1000*1500mm
Weight:
500KG
Certification:
ISO 9001-2008, CE
Warranty:
1 Year for brass pipe threading machine
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Brass pipe threading machine hollow tube thread making machine
Color:
Green(or according to your need)
Work piece diameter:
9-35/mm
Range of pitch rolled:
0.5-2.5P
Thread length:
Fixed and rolling through for option
Spindle speed:
350-600rpm (variable speed)
Outside diameter of rolling die:
78mm- 90mm
Inside diameter of rolling die:
25.4mm&35mm
Thickness of rolling die:
40mm
Bearing brand:
NSK,UBC
SupplyAbility
SupplyAbility:
Set/Sets per Month it is for brass pipe threading machine
Packaging & Delivery
Packaging Details
1. brass pipe threading machine is packed in wooden case
2. neutral package can be accepted
Port
shenzhen
Lead Time :
Shipped in 20 days after payment
Product Description

Product Application

1. Making thread on pipe, tube and other hollow parts.
2. Used widely in construction, motorcycle, car and railway industry.
3. Fully automatic production of bolts, screws, and other fasteners.
4. Can be used for fully automatic production.

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-30A
Diameter for the threads rolled
φ9-φ35/mm
Range of pitch rolled
0.5-2.5P
Length of thread rolled
In feed or Thru feed
Spindle speed
350-600rpm (variable speed)
Outside diameter of rolling die
φ78mm- 90mm
Inside diameter of rolling die(keyway)
φ25.4mm&φ35mm
Thickness of rolling die
40mm
Center distance between die spindles
55-90mm
Output(pcs/min)
5-30(pcs/min)
Swiveling Angle(degree)
±3°
Main power motor
3HP
Hydraulic motor
2HP
Max rolling pressure
6T

Main Features

1) Simple structure, so easy to operate and clean.
2) Adopting advanced electric parts and operation parts.
3) Rolling speed can be adjustable.
4) Specifically for making full thread pipe parts, threaded rods, etc.
5) High precision, stability and high durability .
6) ISO9001-2008, CE.

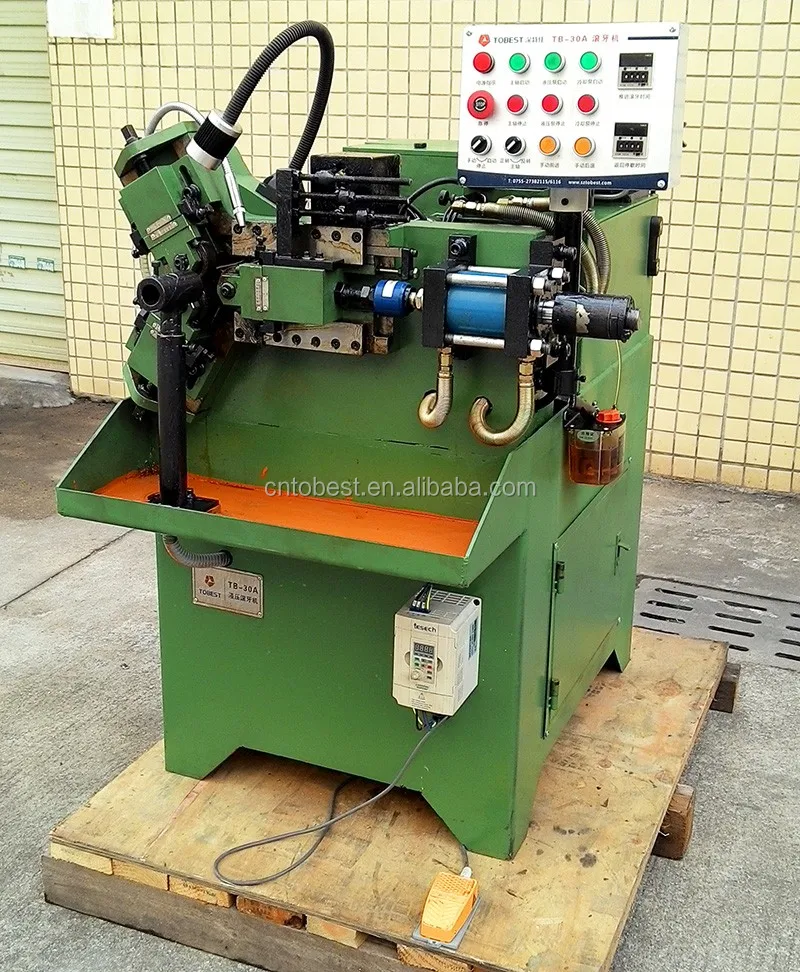

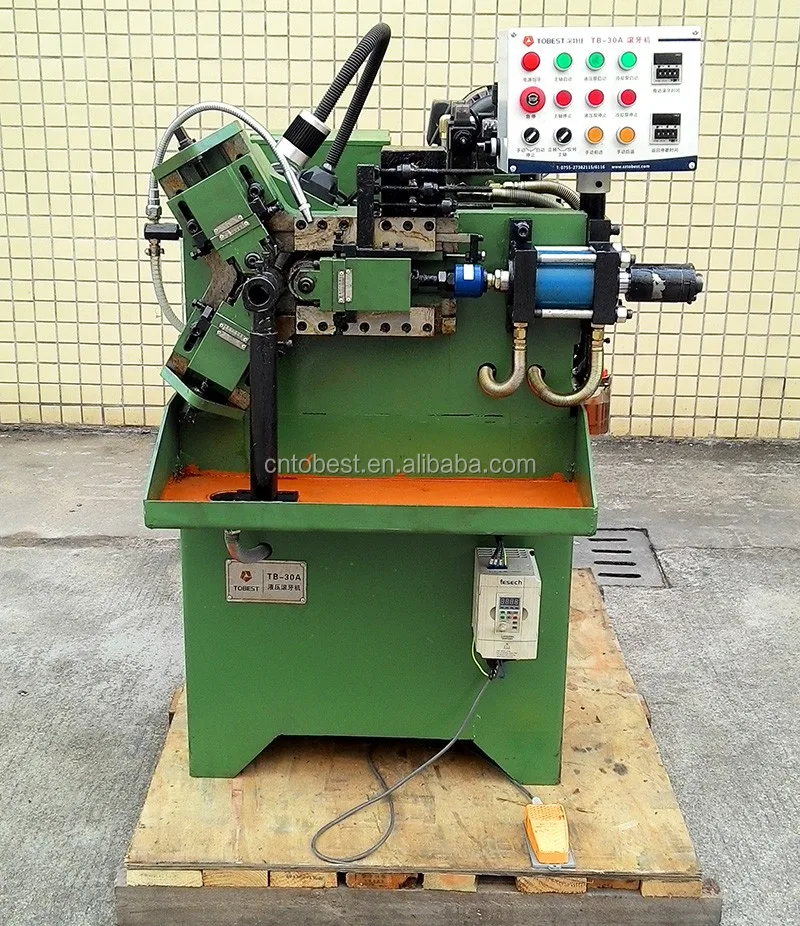

Detailed Images

Machine Parts

Name: Control Box TB-30A

Brand: TOBEST

Original: China Mainland

Simple design, easy to operate.
Safe, with emergency stop button.
Rolling time and speed can be adjustable.
CE Certificate.

Main Features

Name: Main Shafts 25.4mm diameter
Brand: TOBEST
Original: China
Made in TOBEST factory, and the material is Steel No.45.
Through heat treatment and stress testing.

Machine Parts

Name: Solenoid valve
Brand: SMC
Original: Japan
High quality with CE certificate.
Long life time.
Easy to make adjustment.

Main Features

Name: Hydraulic Cylinder
Brand: GROSCHOPP
Original: America
High precision, stability and high durability.
Run smoothly.

Related Products

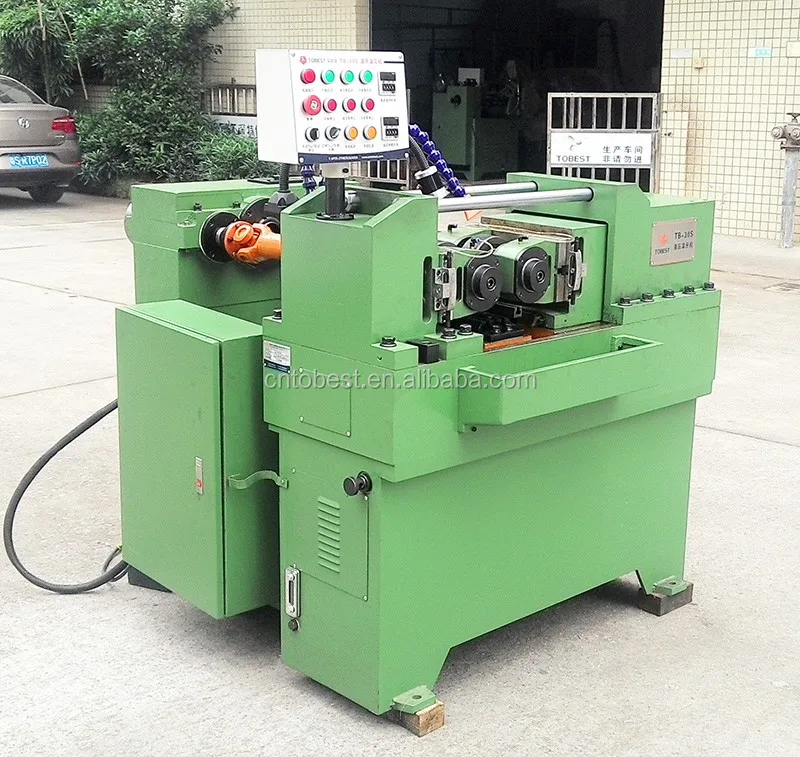

TB-30S

91.8% Response Rate

TB-60A

98% Response Rate

TB-300A-2(Lathe machine)

92% Response Rate

Packing & Delivery
Packaging
Size
118 cm (L) * 100 cm(W) * 150 cm (H)
Weight
650 KG



Packaging Details
The normal package is wooden box(Size: 128*110*160 cm L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
