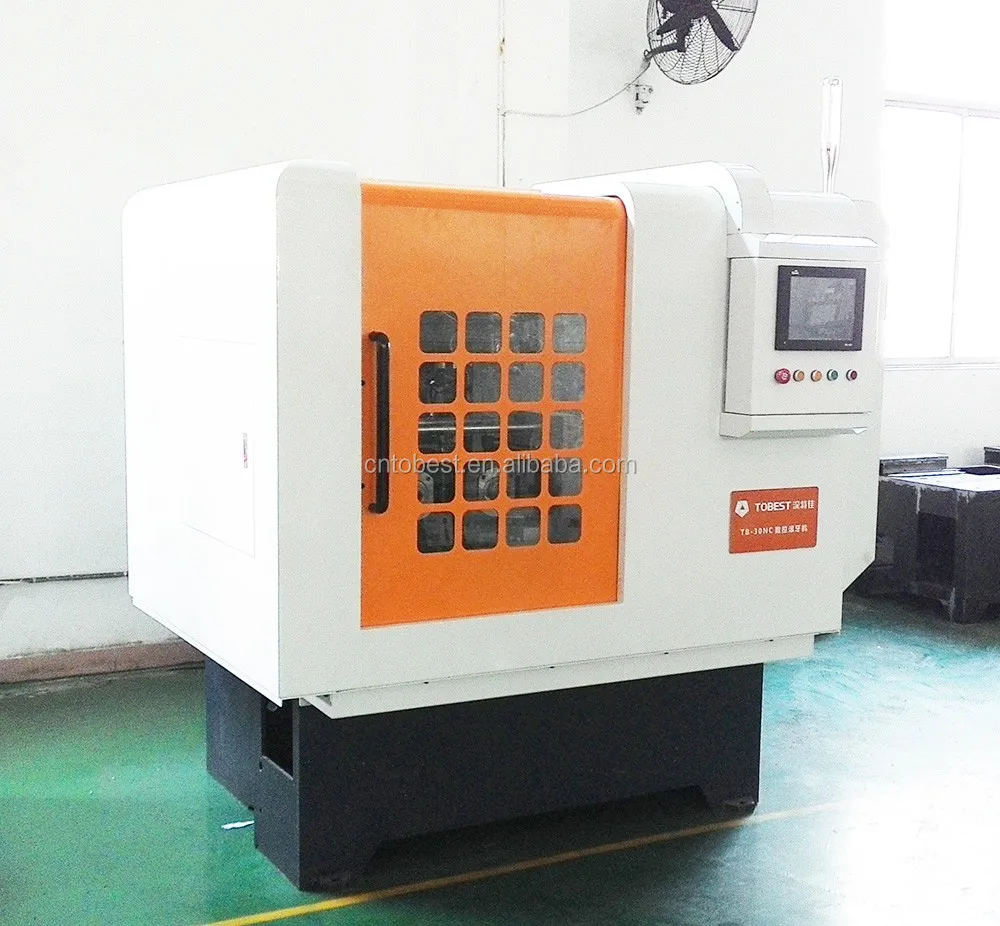

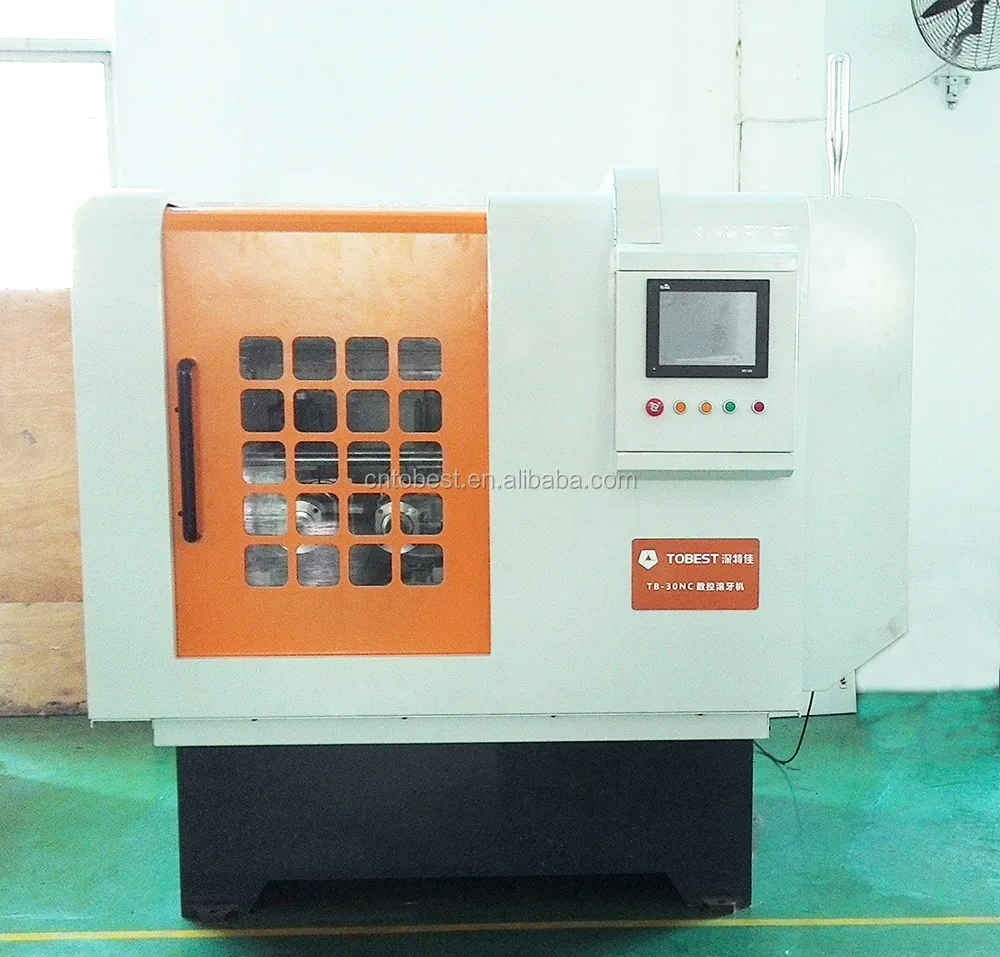

Full automatic CNC thread machine worm thread making machine

FOB Reference Price:Get Latest Price
US $71,850-72,850 / Sets | 1 Set/Sets it is for auto thread machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
threaded rods, worm, screw, bolt
Production Capacity:
4-30 pcs/min
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-30NC
Voltage:
3-380V 50HZ
Power(W):
Servo Motor 2x3KW
Dimension(L*W*H):
1986x1370x1788mm
Weight:
2100KG
Certification:
ISO 9001-2008, CE
Warranty:
1 year for auto thread machine
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Full automatic CNC thread machine worm thread making machine
Diameter for the threads rolled:
6mm-75mm
Range of pitch rolled:
0.5-4P
Max.length of thread rolled:
In feed and thru feed for option
Rotation speed of Spindle:
5-80r/min
Max.rolling pressure:
15T
Slider feed rate ( maximum ):
Max.800mm/min
Center distance between die spindles:
170-258mm
Number of control axes:
Standard 3 (OP. + 2)
Running accuracy:
0.001mm Linear movement
Supply Ability
Supply Ability:
10 Set/Sets per Month it is for auto thread machine
Packaging & Delivery
Packaging Details
1. auto thread machine is packed in wooden case
2. neutral package can be accepted
Port
Shenzhen
Lead Time :
Shipped in 20 days after payment
Product Description

Product Application

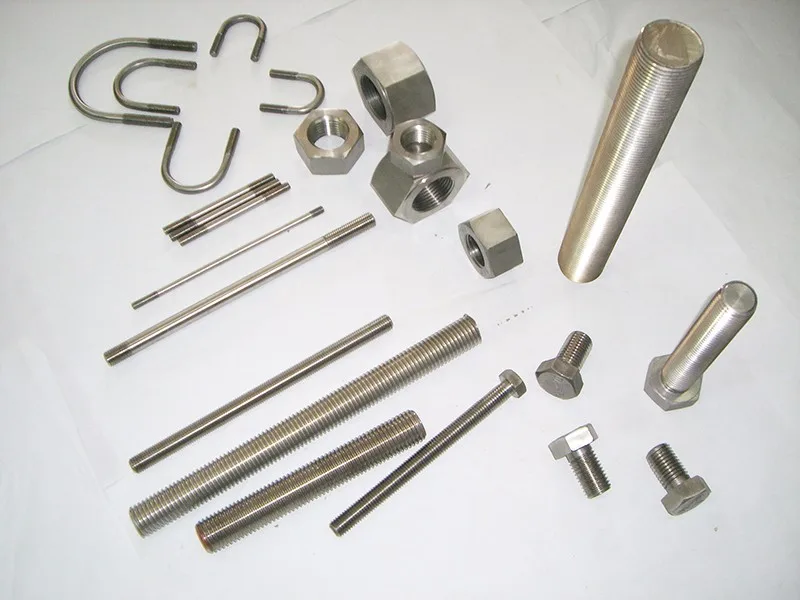

1. Specially for making small worm, shafts, and other high precision parts.

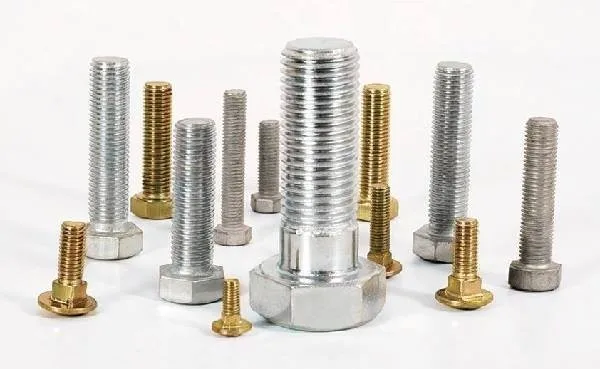

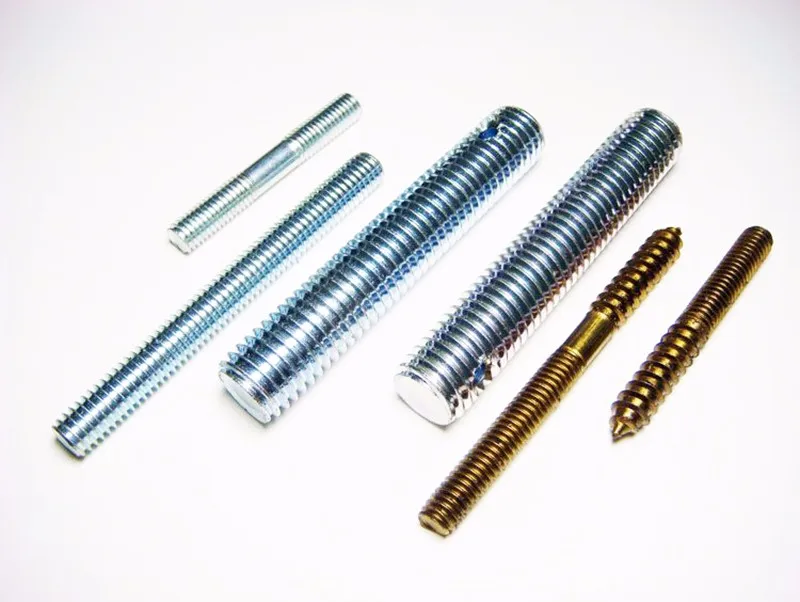

2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.
5. Fully automatic production line.

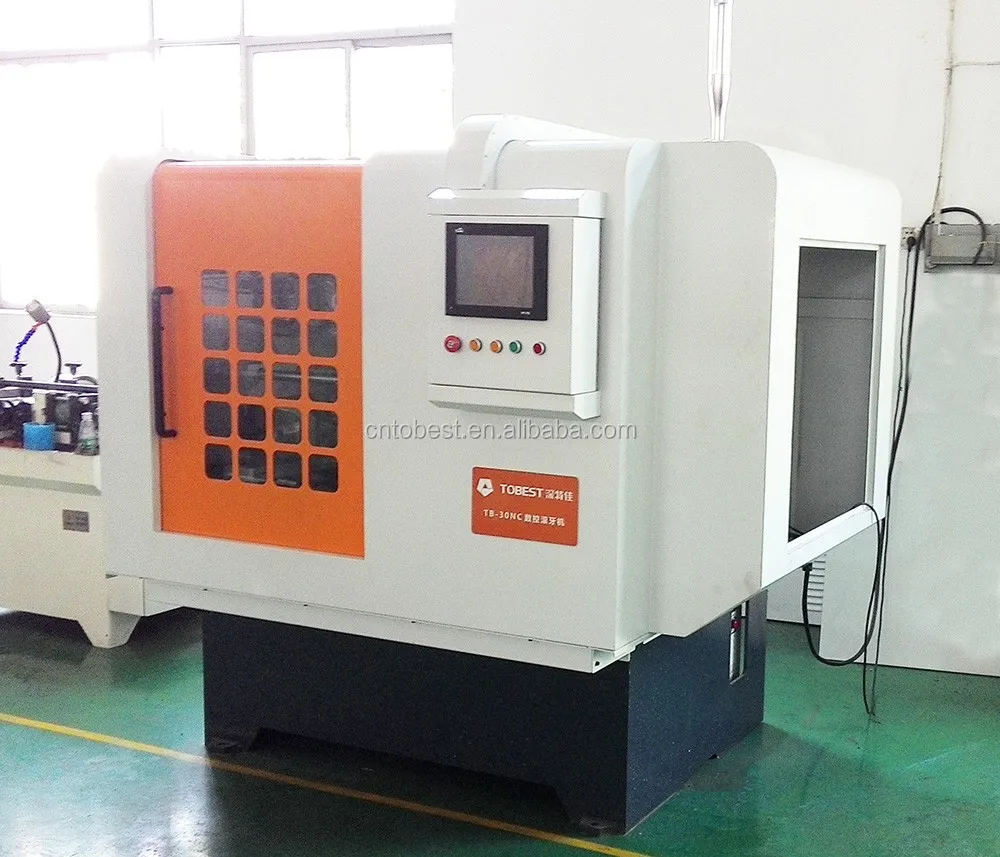

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-30NC
Diameter for the threads rolled
φ6mm-φ75mm
Range of pitch rolled
0.5-4P
Max.length of thread rolled
In feed or Thru feed
Rotation speed of Spindle
5-80r/min
Max.rolling pressure
15T
Slider feed rate ( maximum )
Max.800mm/min
Center distance between die spindles
170-258mm
Hydraulic stroke ( maximum )
85mm
Spindle rotation angle
±7.5°
Outside/inside diameter,thickness of rolling dies
φ140-175mm/φ54mm/120mm(Max.)
Cooling pump drive motor power
Servo Motor 2x3KW
Working oil pump drive motor power
125W/3PH/380V

Main Features

1) HMI Intelligent Control System

2) Precision feeding by servo motor with ball screw structure.

3) Center frame structure can be moved along, can be installed servo feed.

4) Overloading ball guide rail, to ensure accurate reciprocation.

5) Can be rolled high precision worm,realize a one-time armored and multistage processing.

6) Spindle is powered by two servo motors, can be infinitely adjustable-speed, to realize the forward reverse when rolling products.

Detailed Images

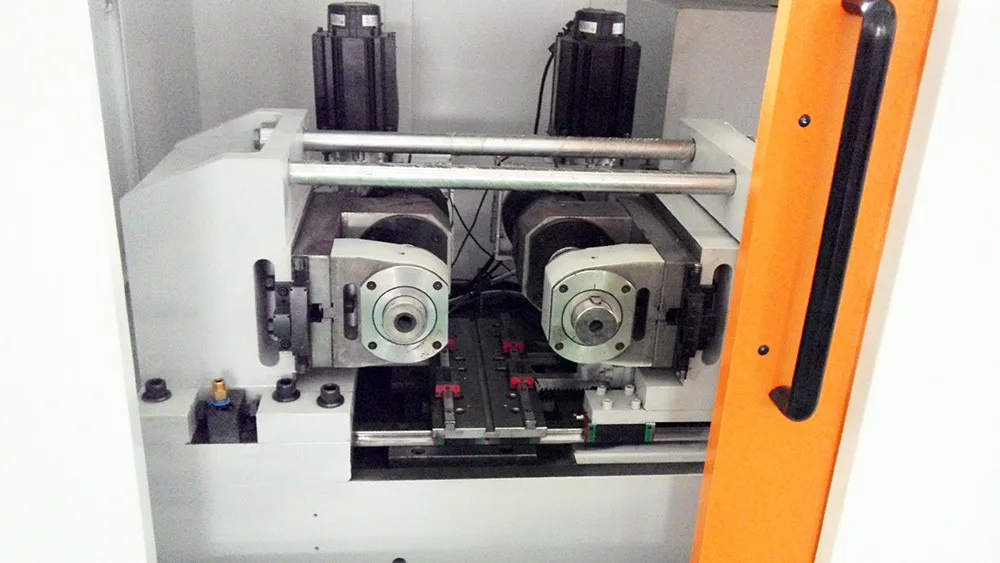

Machine Parts

Name: Servo motor

Brand: Siemens

Original: Germany

Power: 3 HP, 3 P-380 V, 50/60 Hz.

Installed with cooling fan.
CE Certificate.

Main Features

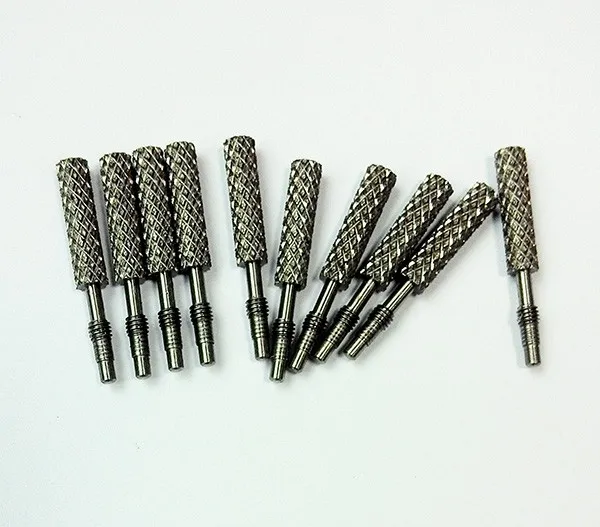

Name: Worm screw
Brand: TOBEST
Original: China
Many kinds of worm screws can be made by TOBEST CNC thread rolling machine TB-30NC

Related Products

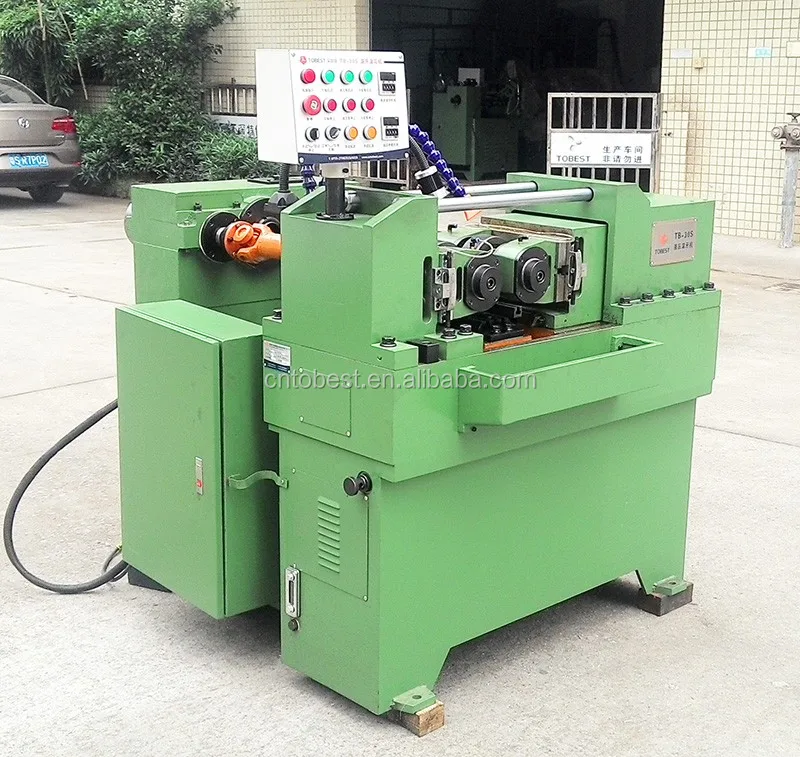

TB-30S

91.8% Response Rate

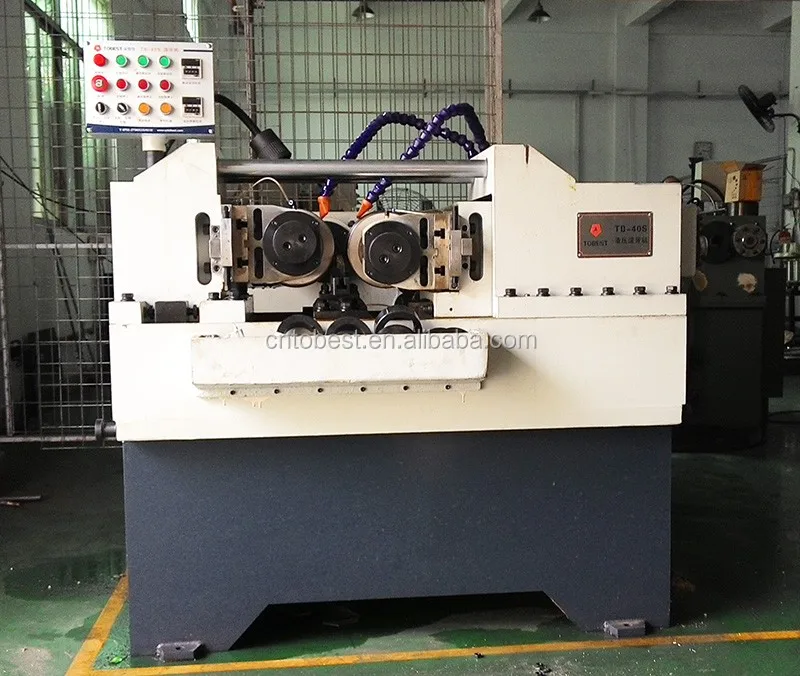

TB-40S

91% Response Rate

TB-50S

85% Response Rate

Packing & Delivery
Packaging
Size
198 (L) * 137 (W) * 179(H) cm
Weight
2.1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
