BSW UNC UNF Thread rolling dies thread rolling machine thread machine

FOB Reference Price:Get Latest Price
US $6,280-7,280 / Sets | 1 Set/Sets it is for thread machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bolt, screw, threaded rods, anchor bolts, etc
Production Capacity:
4-25 pcs/min
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-20S
Voltage:
3-380V 50HZ
Power(W):
2205W
Dimension(L*W*H):
1000*1000*1200mm
Weight:
700(KG)
Certification:
ISO 9001-2008, CE
Warranty:
1 Year for thread machine
After-sales Service Provided:
Engineers available to service machinery overseas
Item:
BSW UNC UNF Thread rolling dies thread rolling machine thread machine
Color:
Green(or according to your need)
Bearing brand:
NSK,UBC
Hydraulic motor:
2HP
Max.rolling pressure:
10T
Work piece diameter:
6-25/mm
Range of pitch rolled:
0.4-2.5P
Length of thread rolled:
In feed and thru feed for option
Spindle speed:
27rpm
Outside diameter of rolling die:
100mm-118mm
Supply Ability
Supply Ability:
80 Set/Sets per Month it is for thread machine
Packaging & Delivery
Packaging Details
1. thread machine is packed in wooden case
2. neutral package can be accepted
Port
Shenzhen
Lead Time :
Shipped in 20 days after payment
Product Description

Product Application

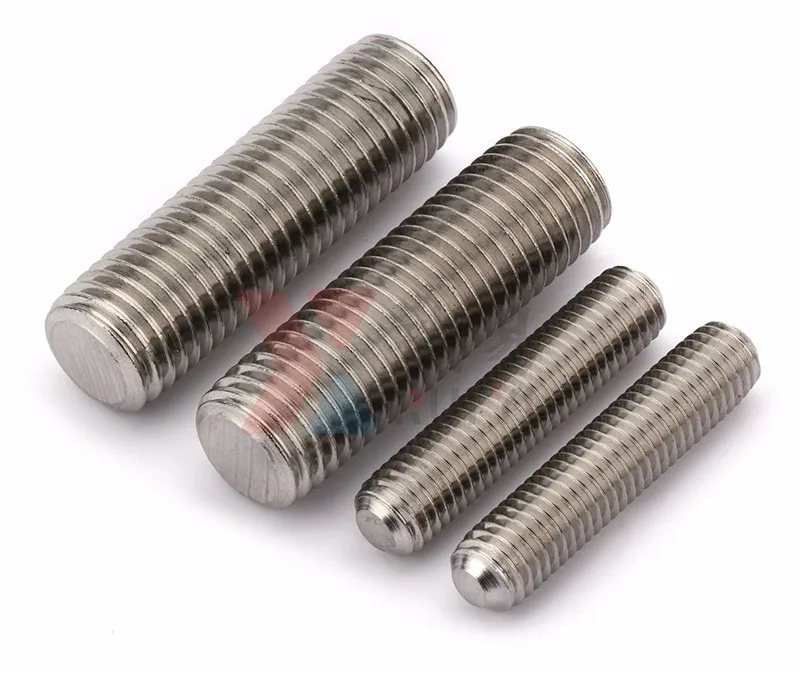

1. Working for 1-3 m long threaded rods, or longer.
2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.
5. Fully automatic production line.

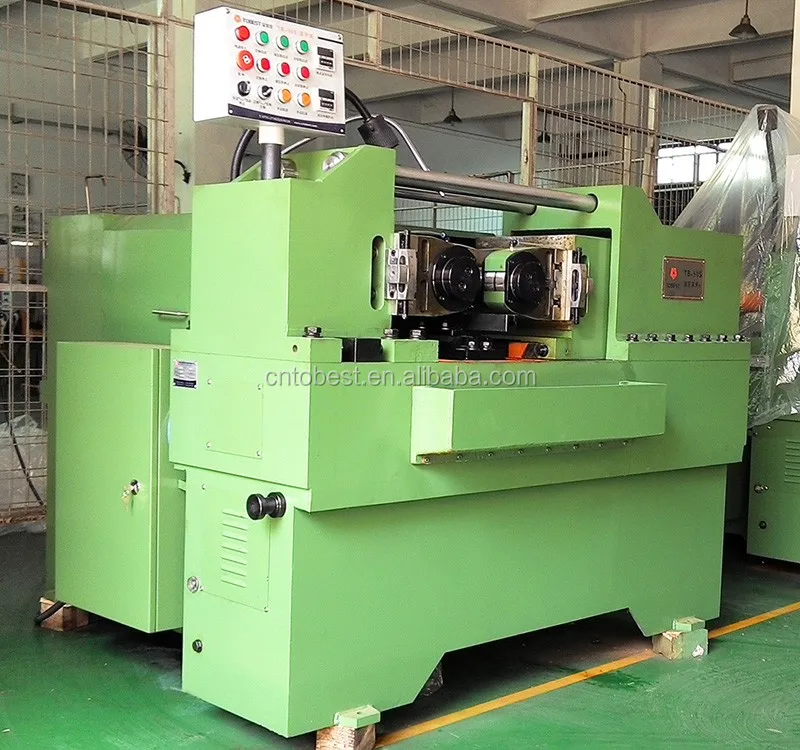

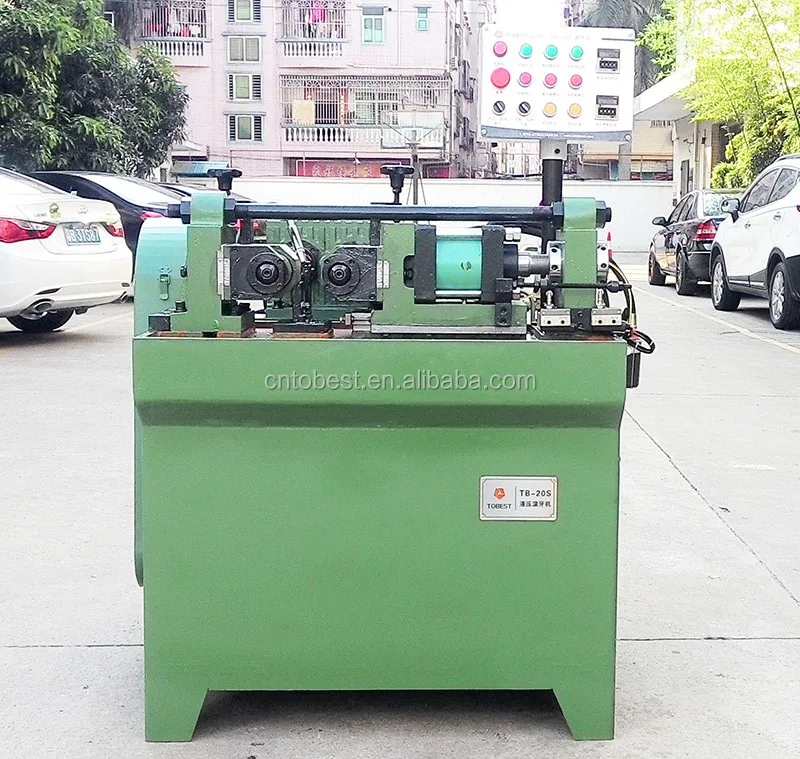

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-20S
Diameter for the threads rolled
φ6-φ25/mm
Range of pitch rolled
0.4-2.5P
Length of thread rolled
In feed or Thru feed
Spindle speed
27rpm
Outside diameter of rolling die
φ100mm-φ118mm
Inside diameter of rolling die(keyway)
φ50.5mm
Thickness of rolling die
50mm
Min.center distance between die spindles
100mm
Max.center distance between die spindles
135mm
Machine motor
3HP
Hydraulic motor
2HP
Max.rolling pressure
6T
Supply voltage
380V

Main Features

1)  Fixed or rolling-through for your option.

2) Suitable for the workpieces with small pitch and long length.

3) Hydraulic driving for tool-forward slide plate, the positioning is accurate.

4) High-strength square-rail type design, the rail is imposed with heat treatment and grinding to improve the stability.

5) CE Certificate.

Detailed Images

Machine Parts

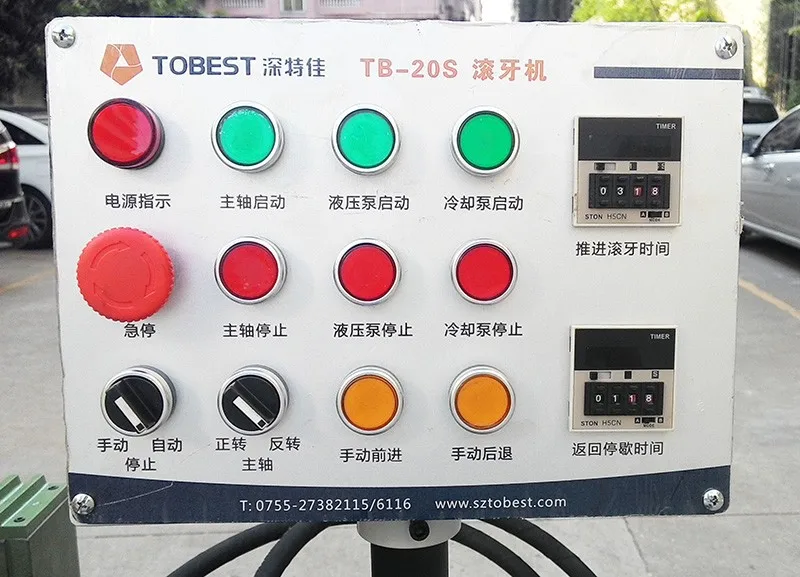

Name: Control Box TB-20S

Brand: TOBEST

Original: China

Simple design, easy to operate.

Safe, with emergency stop button.
Rolling time and speed can be adjustable.

Main Features

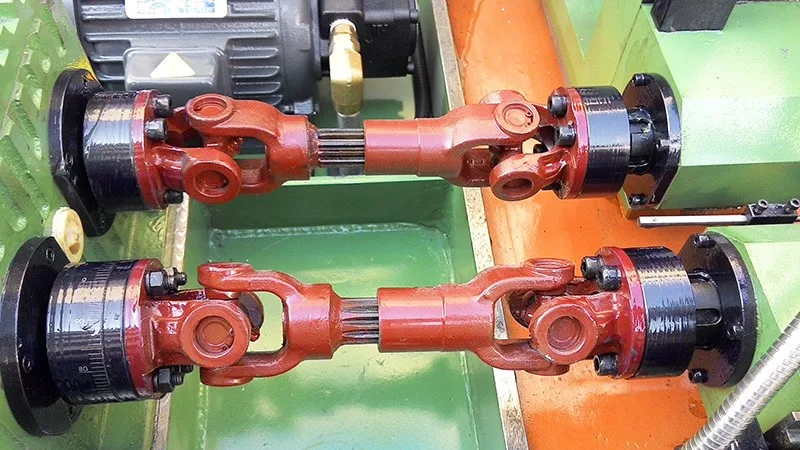

Name: Transmission Shafts
Brand: Dong Feng
Original: Hong Kong
Diameter of spindle: 54 mm.

Used for heavy trucks.
High stability and durability.

Machine Parts

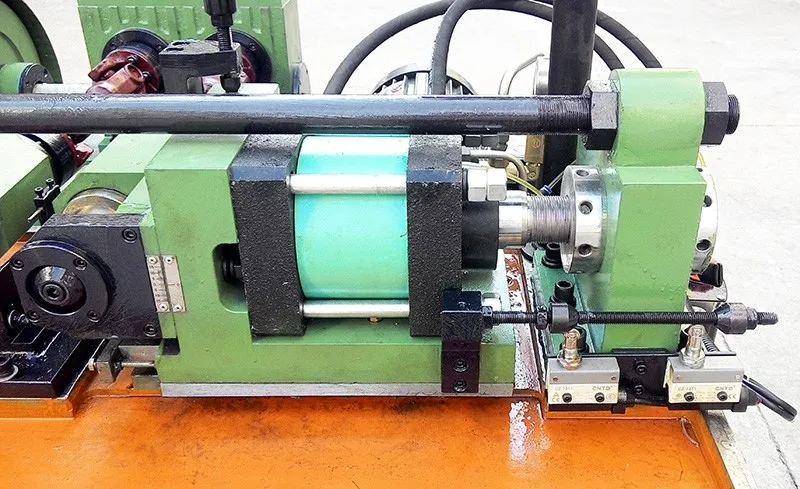

Name:  Hydraulic cylinder
Brand: GROSCHOPP
Original: America
Power: 3 HP, 3 P-380 V, 50/60 Hz.

Installed with cooling fan.
High quality and durability.

Main Features

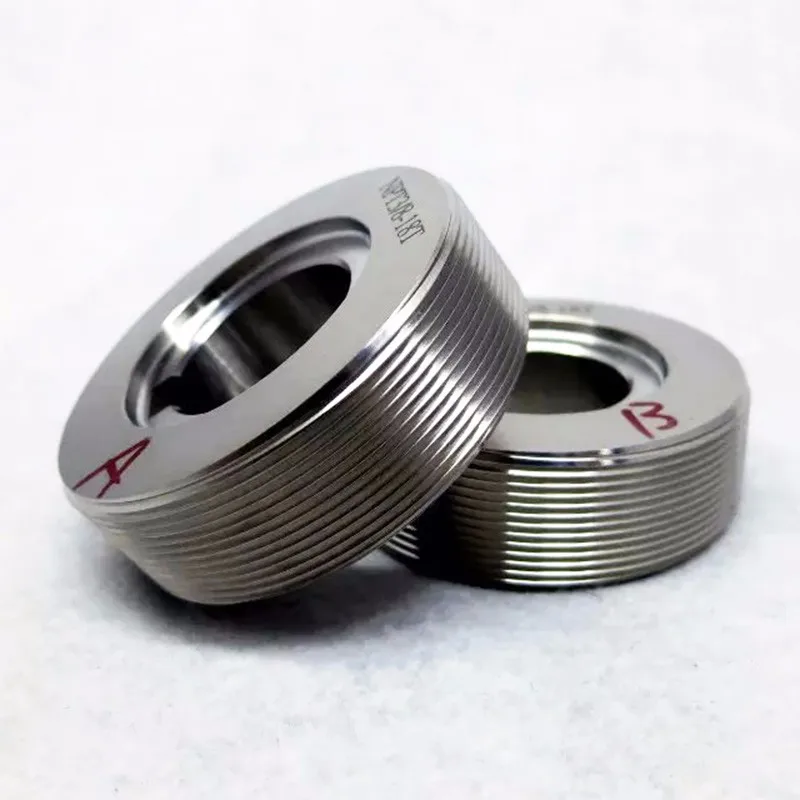

Name: Thread Rolling Dies
Brand: TOBEST
Original: China
High precision, stability and high durability.

Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.
OD: 100-118 mm
ID: 50.5 mm
Thickness:  50 mm
Related Products

TB-25S

91.8% Response Rate

TB-30S

90% Response Rate

TB-50S

92% Response Rate

Packing & Delivery
Packaging
Size
110 (L) * 110 (W) * 125 (H) cm
Weight
756 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
