Cheap worm thread rolling machine splicing machine knurling machine

FOB Reference Price:Get Latest Price
US $3,750-4,750 / Sets | 1 Set/Sets it is for worm thread rolling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Worm screw, bolt and nut, fasteners
Production Capacity:
4-25 pcs/min
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-3TGT
Voltage:
3-380V 50HZ
Power(W):
1470W
Dimension(L*W*H):
650*600*750mm
Weight:
440(KG)
Certification:
ISO 9001-2008, CE
Warranty:
1 Year for worm thread rolling machine
After-sales Service Provided:
Engineers available to service machinery overseas
Item:
Cheap worm thread rolling machine splicing machine knurling machine
Work piece diameter:
2-10/mm
Range of pitch rolled:
0.4-1.5P
Length of thread rolled:
no limited
Spindle speed:
50rpm
Bearing brand:
NSK, UBC
Distance between die spindles:
90-130mm
Outside diameter of rolling die:
100mm
Inside diameter of rolling die:
50.5mm
Thickness of rolling die:
30mm
Supply Ability
Supply Ability:
80 Set/Sets per Month it is for worm thread rolling machine
Packaging & Delivery
Packaging Details
1. worm thread rolling machine is packed in wooden case
2. neutral package can be accepted
Port
Shenzhen
Lead Time :
Shipped in 15 days after payment
Product Description

Product Application

1. Working for in feed and thru feed shafts, threaded rods, worm screws.

2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway and other industry.
5. Fully automatic production line.

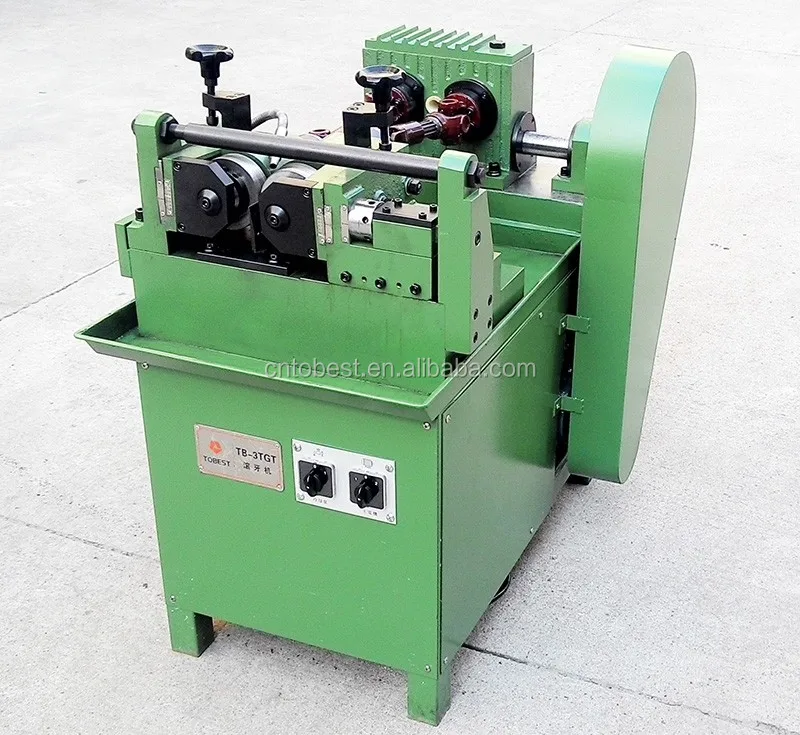

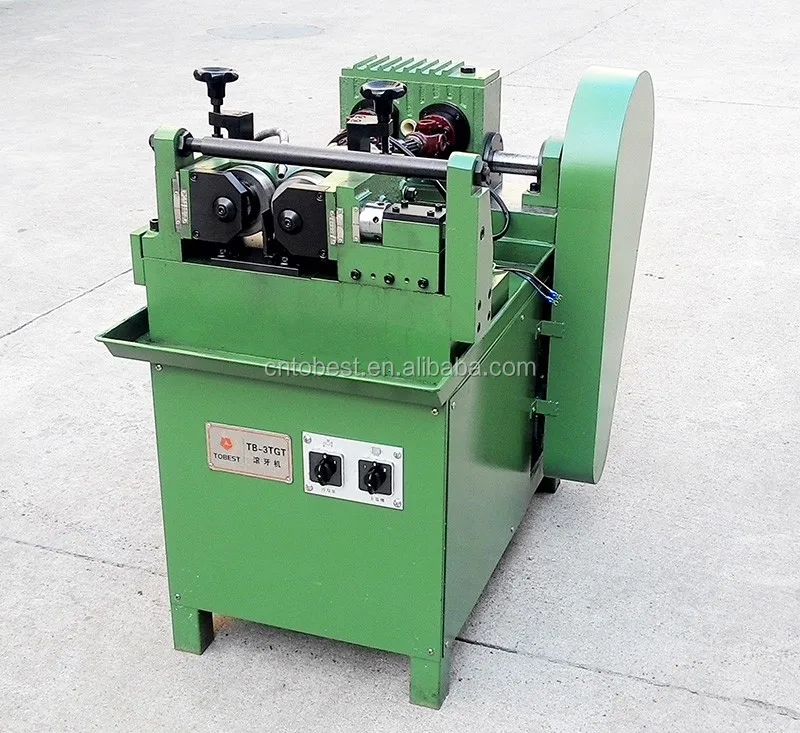

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-3TGT
Diameter for the threads rolled
φ2-φ10/mm
Range of pitch rolled
0.4-1.5P
Length of thread rolled
In feed or Thru feed
Spindle speed
50rpm
Outside diameter of rolling die
φ100mm
Inside diameter of rolling die(keyway)
φ50.5mm
Thickness of rolling die
30mm
Center distance between die spindles
90-130mm
Machine motor
2HP
Distance from the lathe bed to rolling die
85mm
Supply voltage
380V

Main Features

1) Rolling-through and fixed mode for option.

2) Under fixed rolling mode, adopt eccentric-type process for thread extrusion.

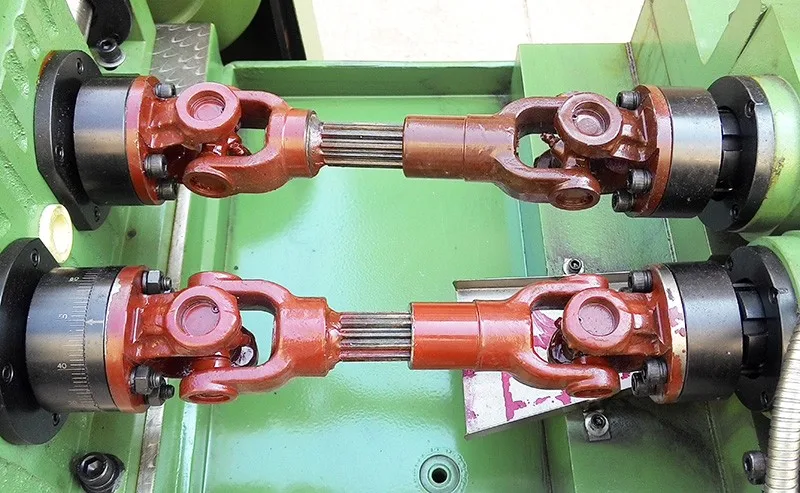

3) Adopt cardan joint for connection and drove by worm gear and rod to improve the product quality.

4) Specially for set screws and fastening screws.

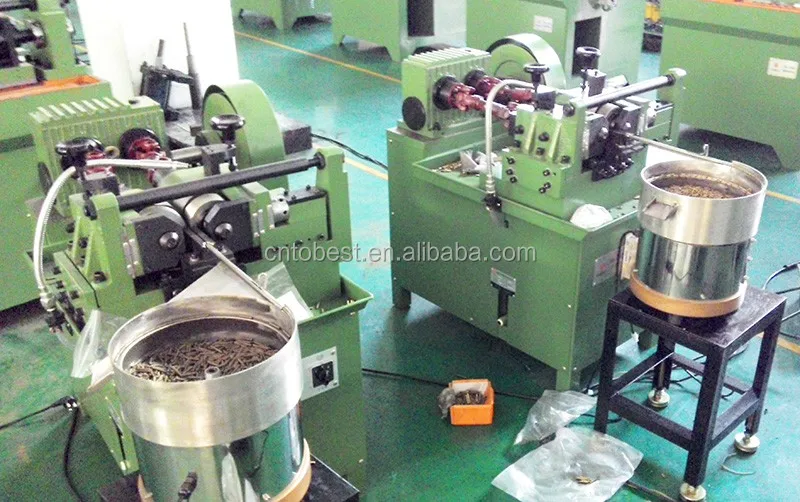

5) Equipped with additional vibration disc to realize full automatic production so that the manpower can be saved effectively.

Detailed Images

Machine Parts

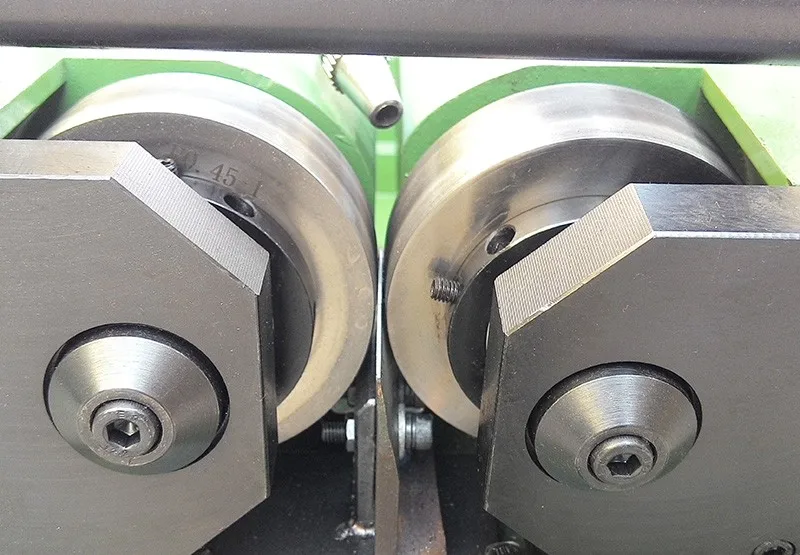

Name: Thread Rolling Dies

Brand: TOBEST

Original: China

High precision, stability and high durability.

Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.
BSW, UNC, UNF, ISO Standard.

Main Features

Name: Main Shafts
Brand: TOBEST
Original: China
Made in TOBEST factory, and the material is Steel No.45.

Through heat treatment and stress testing.
High stability and high durability.
Related Products

TB-3T

91.8% Response Rate

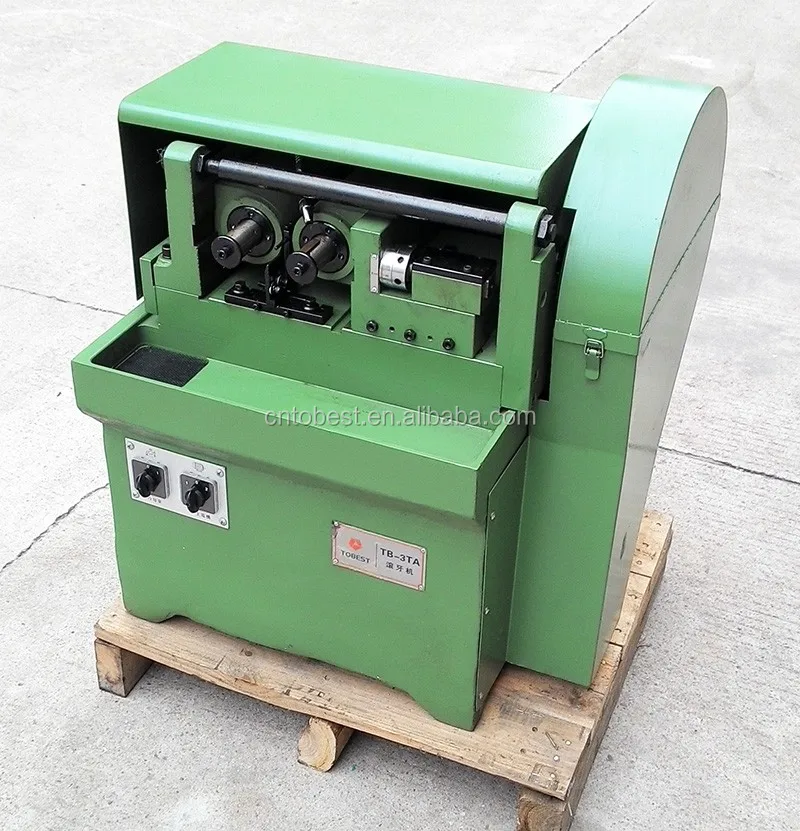

TB-3TA

89% Response Rate

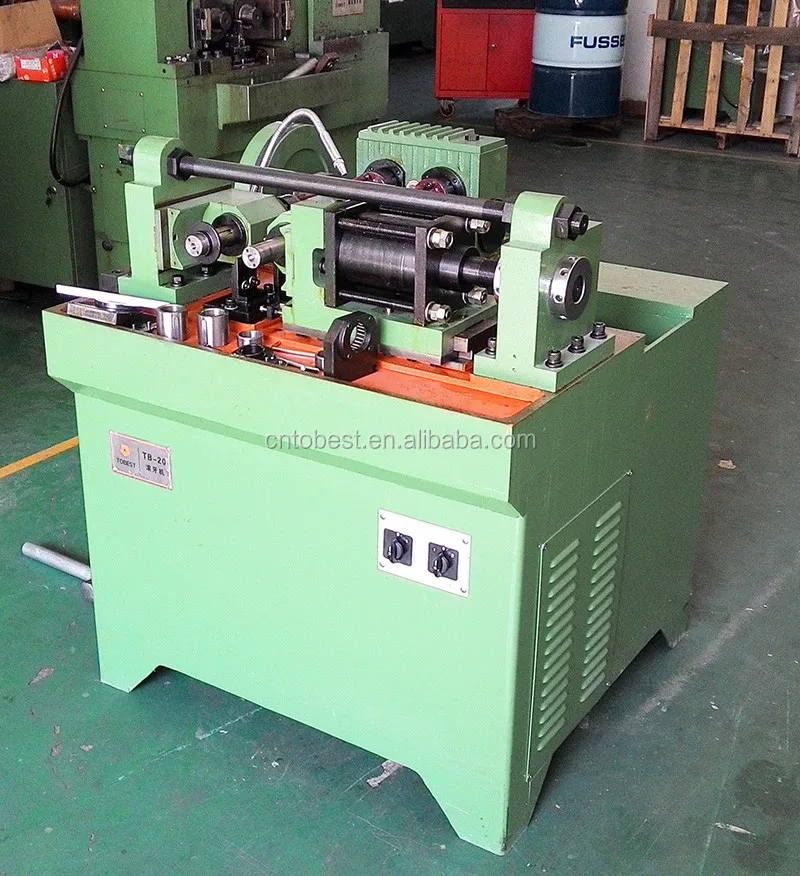

TB-20

98% Response Rate

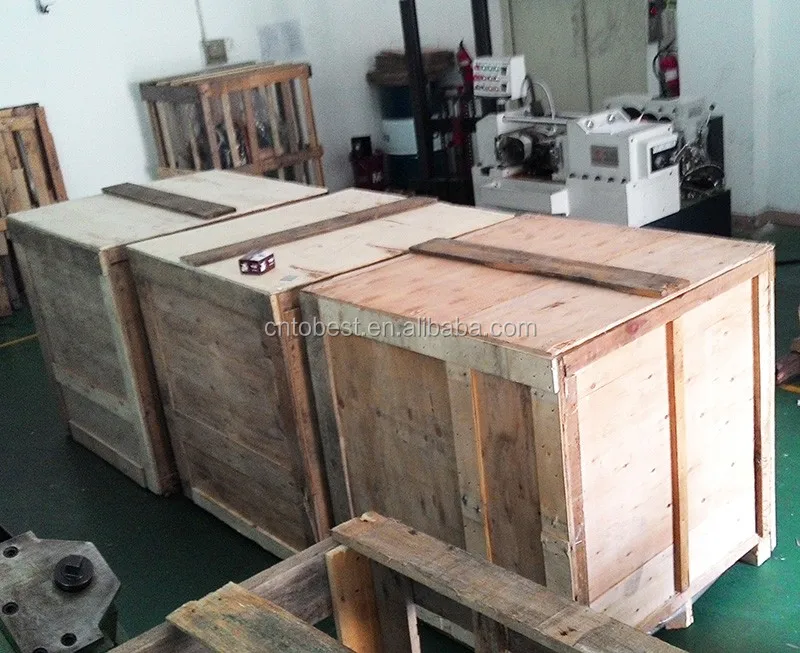

Packing & Delivery
Packaging
Size
88 (L) * 76 (W) * 78 (H) cm
Weight
450 KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
