Quick Details

  • Condition: New
  • Application: Pipe, tube, and other hollow parts, Construction, car, motorcycle, railway industry, etc
  • Production Capacity: 4-25(pcs/min)
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOBEST
  • Model Number: TB-60A
  • Voltage: 3-380V 50HZ
  • Power(W): 4042W
  • Dimension(L*W*H): 1600*1500*1600mm
  • Weight: 1270KG
  • Certification: ISO 9001-2008, CE
  • Warranty: 1 Year for thread rolling machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: TOBEST thread rolling machine hydraulic thread rolling machine
  • Color: Green/customised
  • Hydraulic motor: 3HP
  • Swiveling Angle(degree): ±3°
  • Bearing brand: NSK,UBC
  • Diameter for the threads rolled: 18-60/mm
  • Range of pitch rolled: 1.0-4.0P
  • Max.length of thread rolled: In feed and thru feed for option
  • Spindle speed: 220/360/560/750rpm (variable speed)

Packaging & Delivery

Packaging Details 1. thread rolling machine is packed in wooden case
2. neutral package can be accepted
Delivery Time Shipped in 20 days after payment
Product Description

Product Application

1. Making thread on pipe, tube and other hollow parts.
2. Used widely in construction, motorcycle, car and railway industry.
3. Fully automatic production of bolts, screws, and other fasteners.
4. Can be used for fully automatic production.

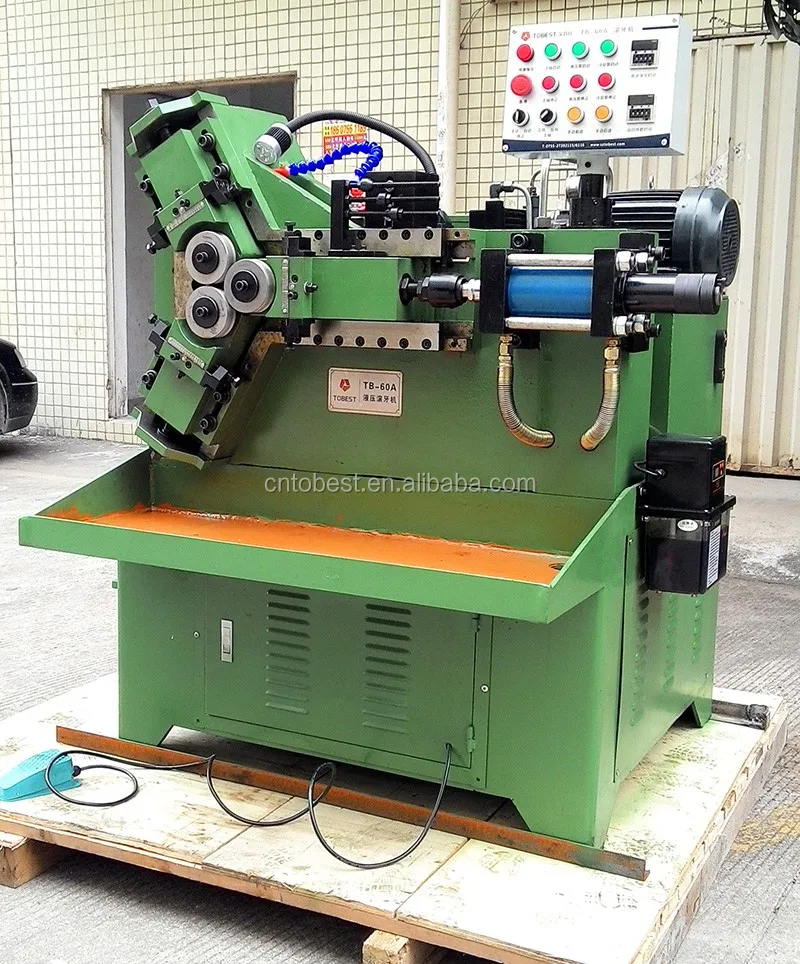

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-60A
Diameter for the threads rolled
φ18-φ60/mm
Range of pitch rolled
1.0-4.0P
Length of thread rolled
In feed or Thru feed
Spindle speed
220/360/560/750rpm (variable speed)
Outside diameter of rolling die
φ118mm- 130mm
Inside diameter of rolling die
φ40mm
Thread rolling Die Length
50mm
Range of distance between the roller shaft
105-90mm
Output(pcs/min)
4-25(pcs/min)
Swiveling Angle(degree)
±3°
Main power motor
5.5HP
Hydraulic motor
3HP
Max rolling pressure
12T

Main Features

1) Simple structure, so easy to operate and clean.
2) Adopting advanced electric parts and operation parts.
3) Rolling speed can be adjustable.
4) Specifically for making full thread pipe parts, threaded rods, etc.
5) High precision, stability and high durability.
6) ISO9001-2008, CE.

Detailed Images

Machine Parts

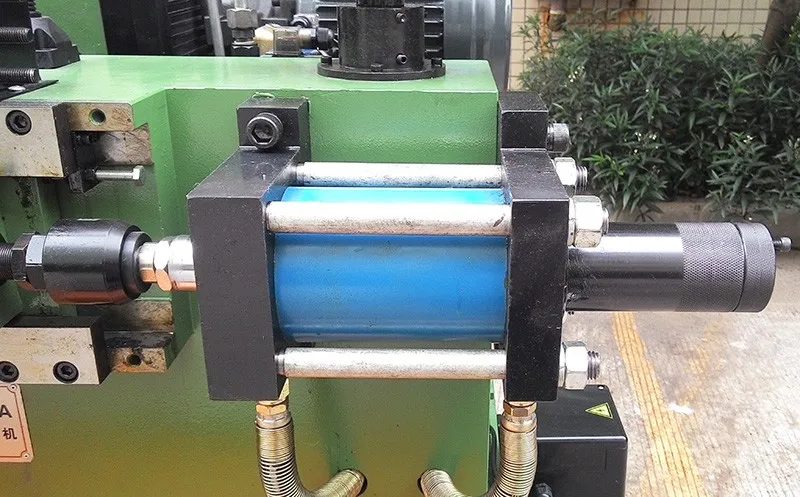

Name: Hydraulic Cylinder

Brand: GROSCHOPP

Original: America

High precision, stability and high durability.
Run smoothly.

Long lifetime more than 10 years.

Main Features

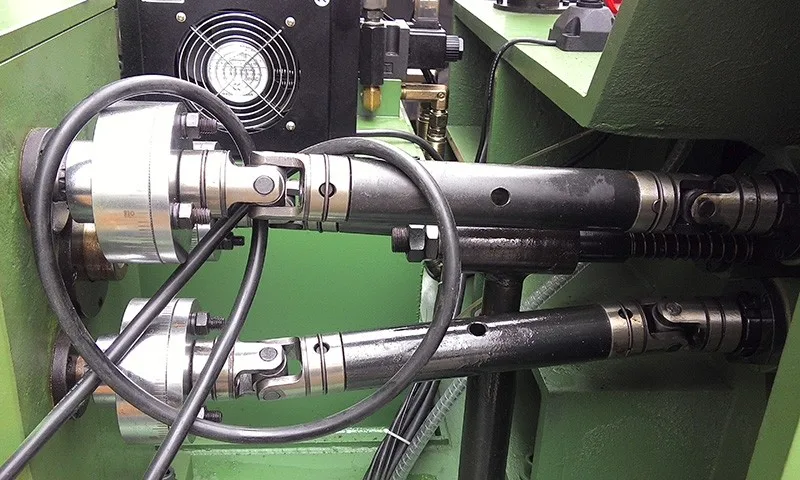

Name: Main Shafts
Brand: TOBEST
Original: China
Made in TOBEST factory, and the material is Steel No.45.
Through heat treatment and stress testing.

High stability and high durability.

Machine Parts

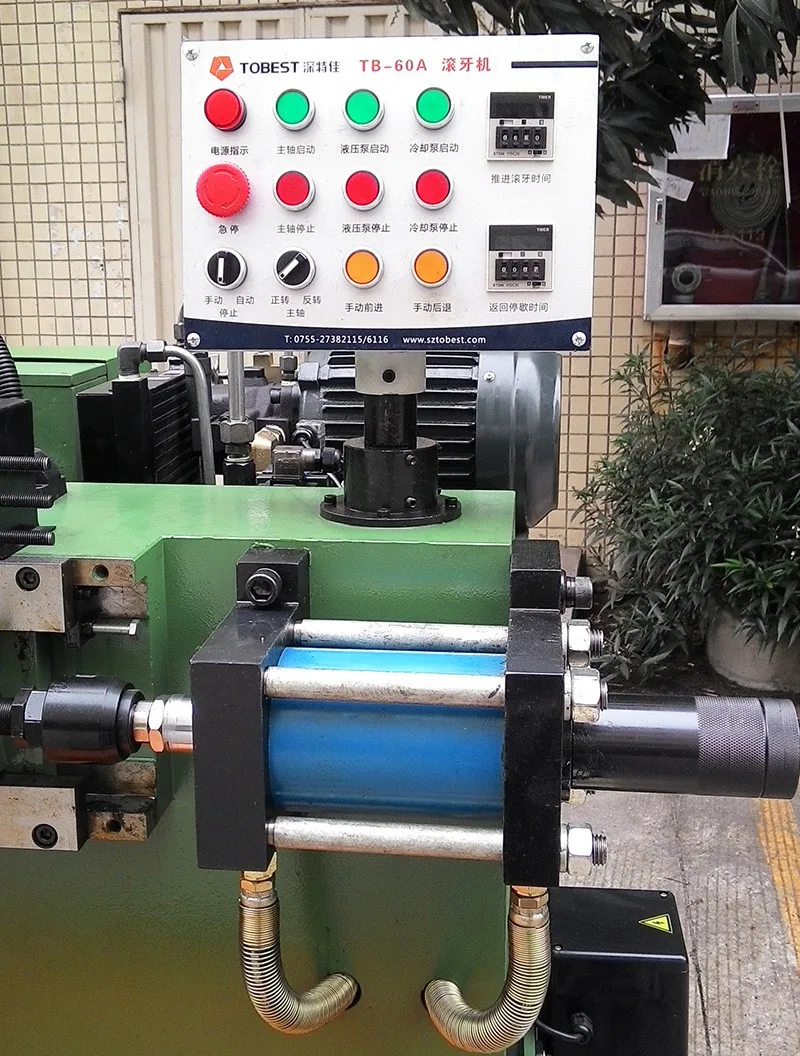

Name: Control Box
Brand: TOBEST
Original: China Mainland
Simple design, easy to operate.
Safe, with emergency stop button.
Rolling time and speed can be adjustable.
CE Certificate.

Main Features

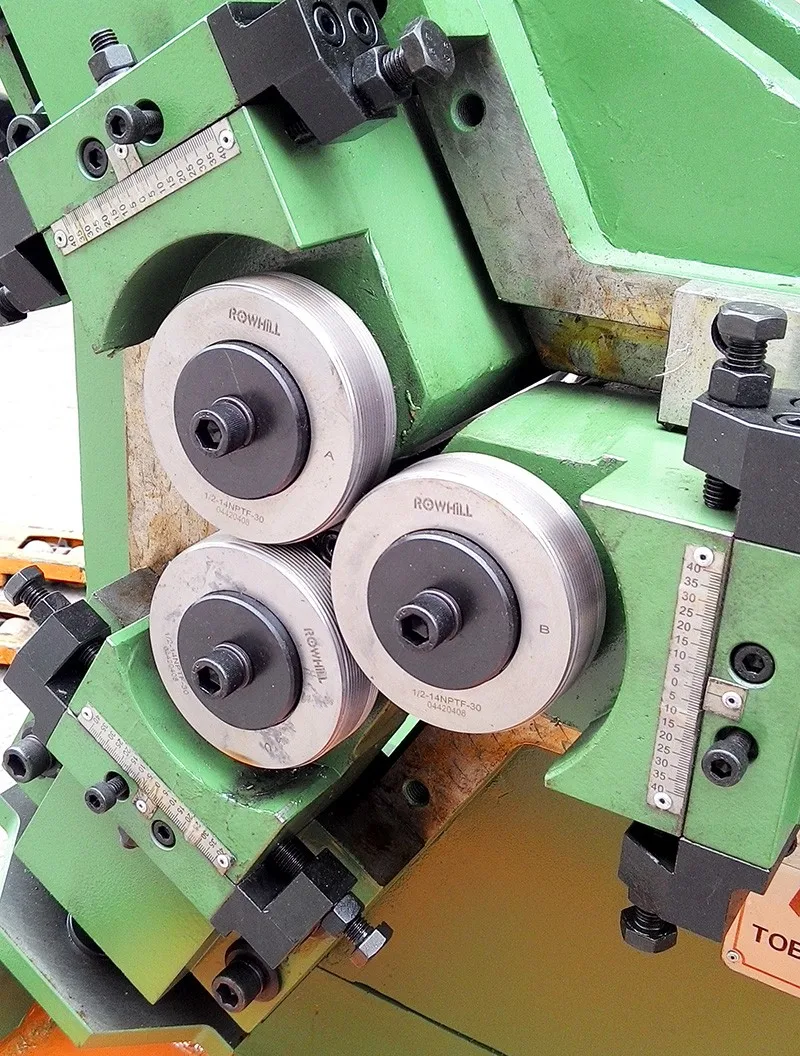

Name: Thread Rolling Dies
Brand: TOBEST
Original: China
High precision, stability and high durability.
Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.

Related Products

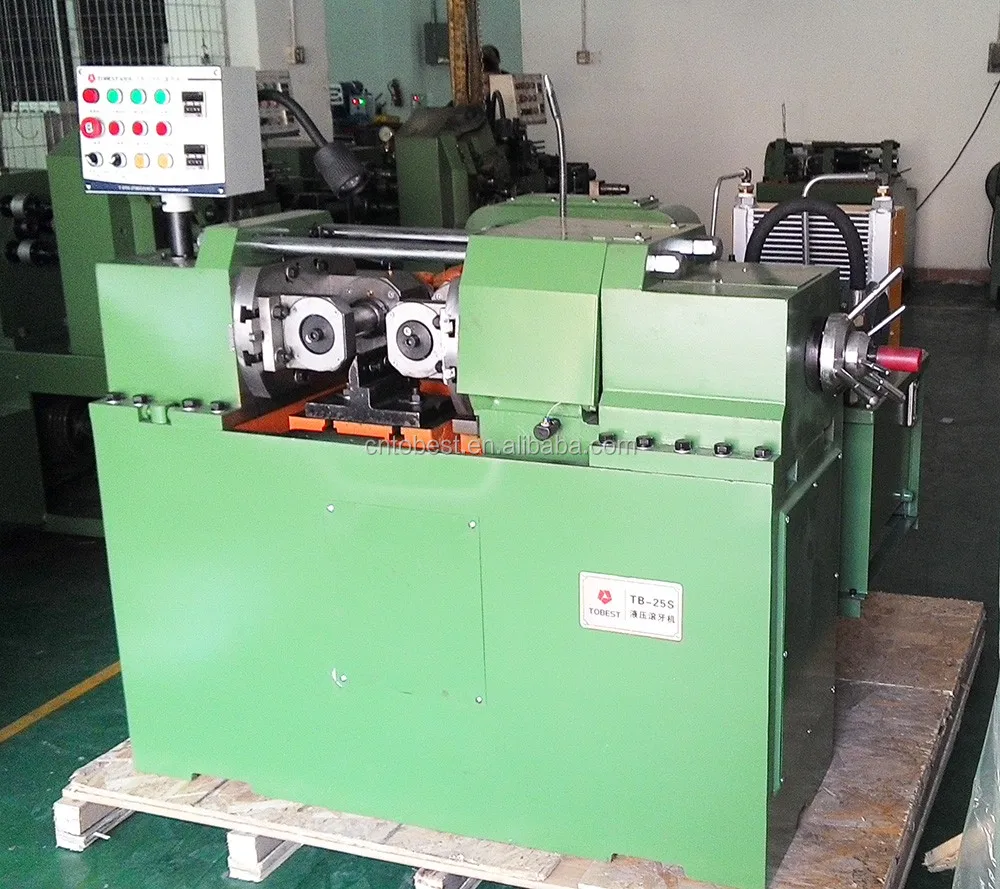

TB-25S

91.8% Response Rate

TB-30A

93.8% Response Rate

TB-40S

98% Response Rate

Packing & Delivery
Packaging
Size
160 (L) * 150 (W) * 160 (H)
Weight
1.4 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
