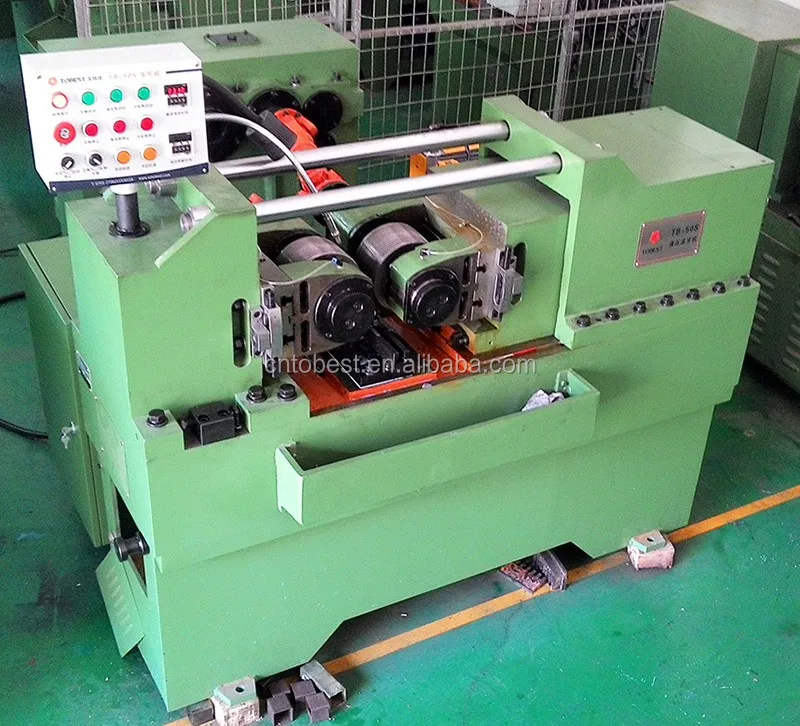

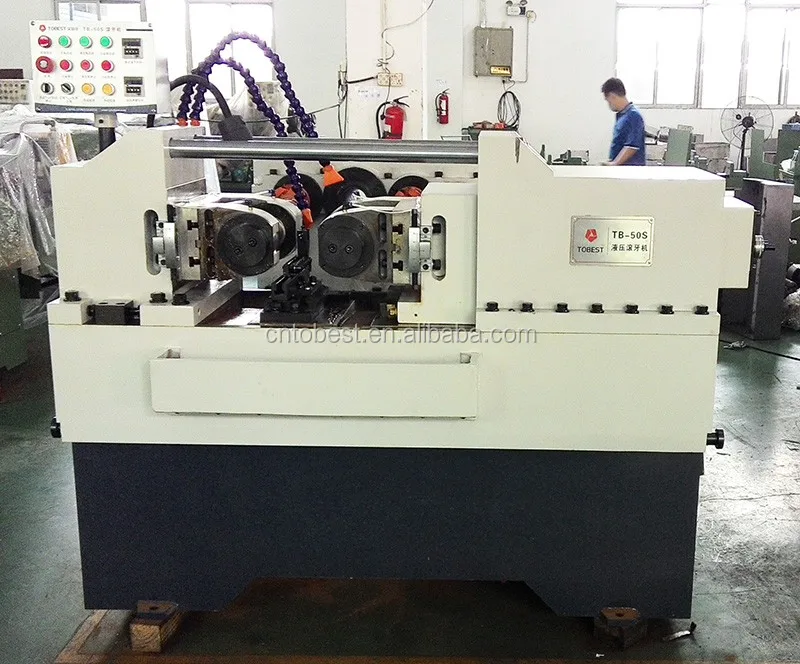

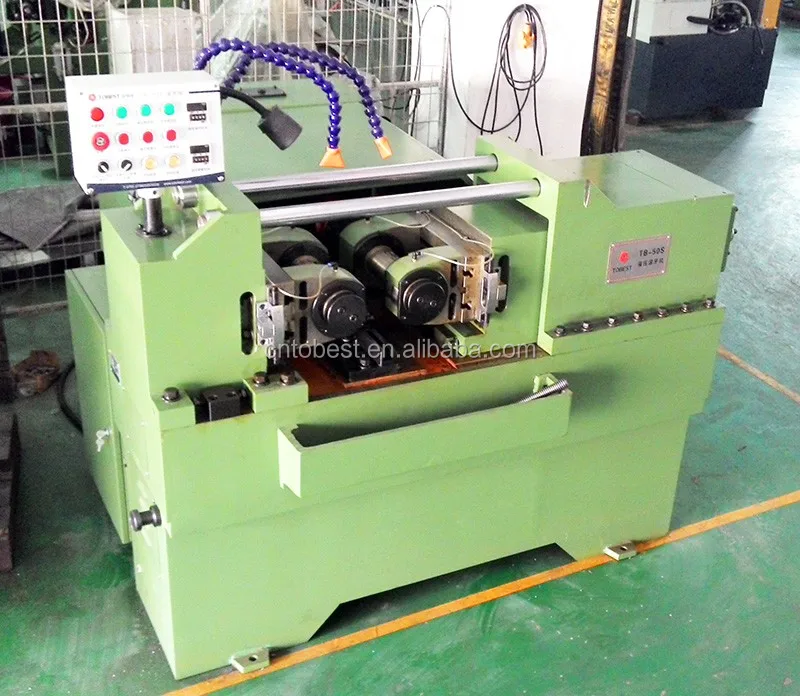

TOBEST steel threaded rod machine thread rolling machine TB-50S

FOB Reference Price:Get Latest Price
US $23,580-24,580 / Sets | 1 Set/Sets it is for threaded rod machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bolt, screw, threaded rods, etc, Bolt, screw, threaded rods, etc
Production Capacity:
4-25(pcs/min)
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Model Number:
TB-50S
Voltage:
3-380V 50HZ
Power(W):
7350W
Dimension(L*W*H):
1850*1910*1380mm
Weight:
3600(KG)
Certification:
ISO 9001-2008, CE
Warranty:
1 year for threaded rod machine
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
TOBEST steel threaded rod machine thread rolling machine TB-50S
Color:
Green/Customised
Bearing brand:
NSK,UBC
Max rolling pressure:
40T
Work piece diameter:
5-100/mm
Range of pitch rolled:
1.0-5.0P
Outside diameter of rolling die:
145-235mm
Inside diameter of rolling die:
75mm
Thickness of rolling die:
120mm
SupplyAbility
SupplyAbility:
Set/Sets per Month it is for threaded rod machine
Packaging & Delivery
Packaging Details
1. threaded rod machine is packed in wooden case
2. neutral package can be accepted
Port
ShenZhen
Lead Time :
Shipped in 20 days after payment
Product Description

Product Application

1. Working for 1-6 m long threaded rods, or longer.
2. Can make thread on bolts, screws, lead screw, U bolt, T bolt, etc.
3. Suitable for making other fasteners with outside thread.
4. Used widely in construction, car, motorcycle, railway, Aeronautics and astronautics industry.
5. Fully automatic production line.

SPECIFICATIONS FOR TOBEST THREAD ROLLING MACHINE TB-50S
Diameter for the threads rolled
φ5-φ100/mm
Range of pitch rolled
0.8-8.0P
Max.length of thread rolled
In feed or Thru feed
Spindle speed
16/25/40/63rpm (variable speed)
Outside diameter of rolling die
φ145-φ235mm
Inside diameter of rolling die(keyway)
φ75mm
Thickness of rolling die
120mm
Distance between the roller shaft
140-320mm
Output(pcs/min)
4-25(pcs/min)
Main power motor
10HP
Hydraulic motor
2HP
Max rolling pressure
40T
Supply voltage
380V

Main Features

1) High precision, stability and high durability with more than 10 years.
2) In feed and thru feed can be realized on one machine.
3) Automatic feeding devices can be installed on machine.
4) Rolling time and speed can be adjustable.
5) ISO9001-2008, CE.

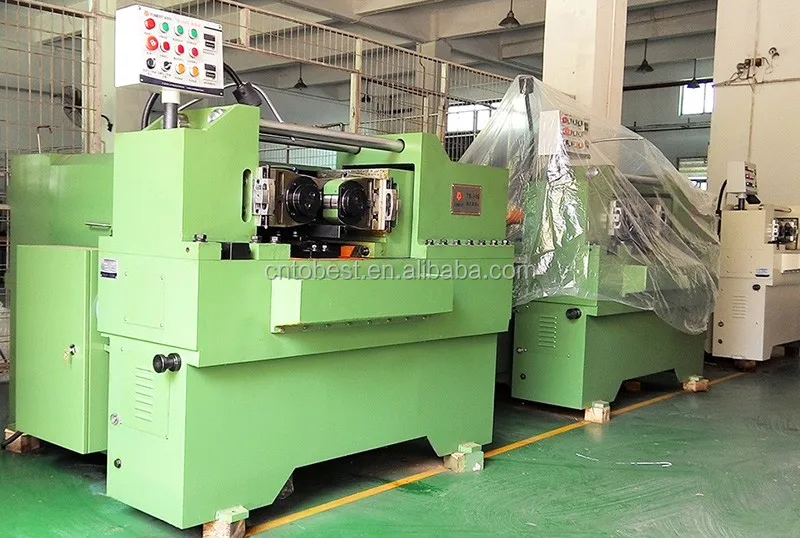

Detailed Images

Machine Parts

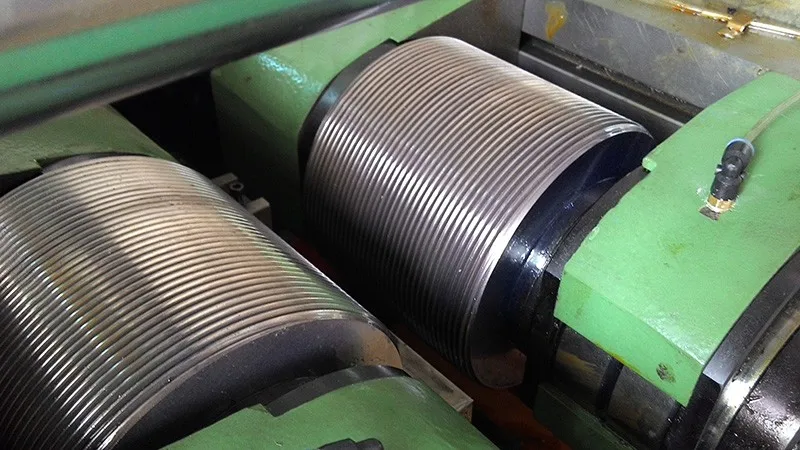

Name: Thread Rolling Dies

Brand: TOBEST

Original: China

High precision, stability and high durability.
Material: SKD11, DC53, D2.
Hardness: 58-62 HRC.

Main Features

Name: Control Box
Brand: TOBEST
Original: China Mainland
Simple design, easy to operate.
Safe, with emergency stop button.
Rolling time and speed can be adjustable.

Machine Parts

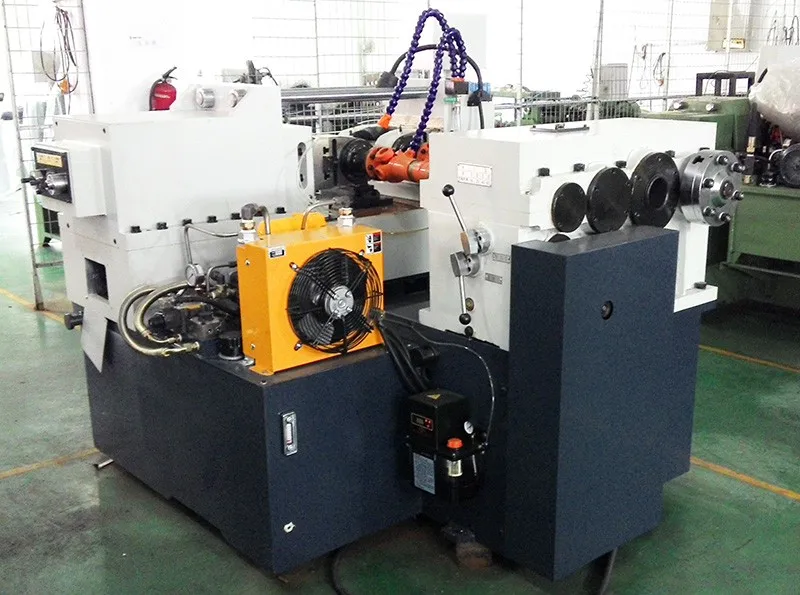

Name: Hydraulic System
Brand: GROSCHOPP
Original: America
Power: 3 HP, 3 P-380 V, 50/60 Hz.
Installed with cooling fan.

Main Features

Name: Transmission Shafts
Brand: Dong Feng
Original: Hong Kong
Diameter of spindle: 75 mm.
Used for heavy trucks.
High stability and durability.

Related Products

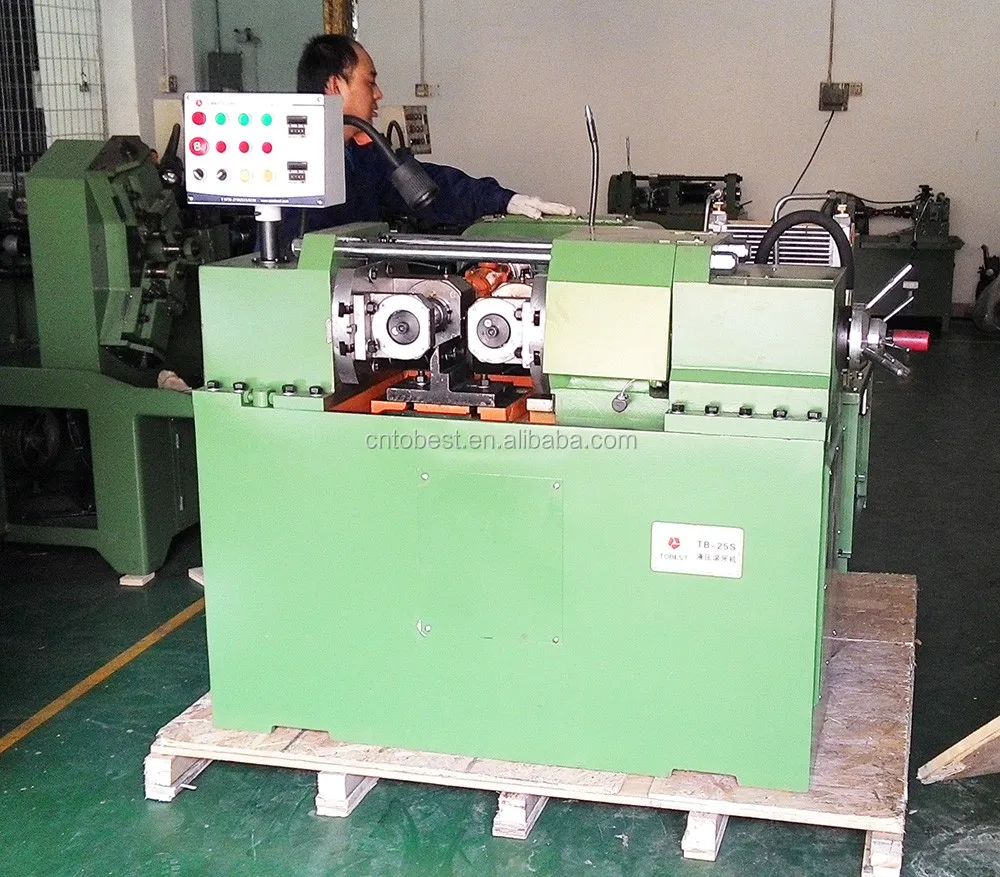

TB-25S

91.8% Response Rate

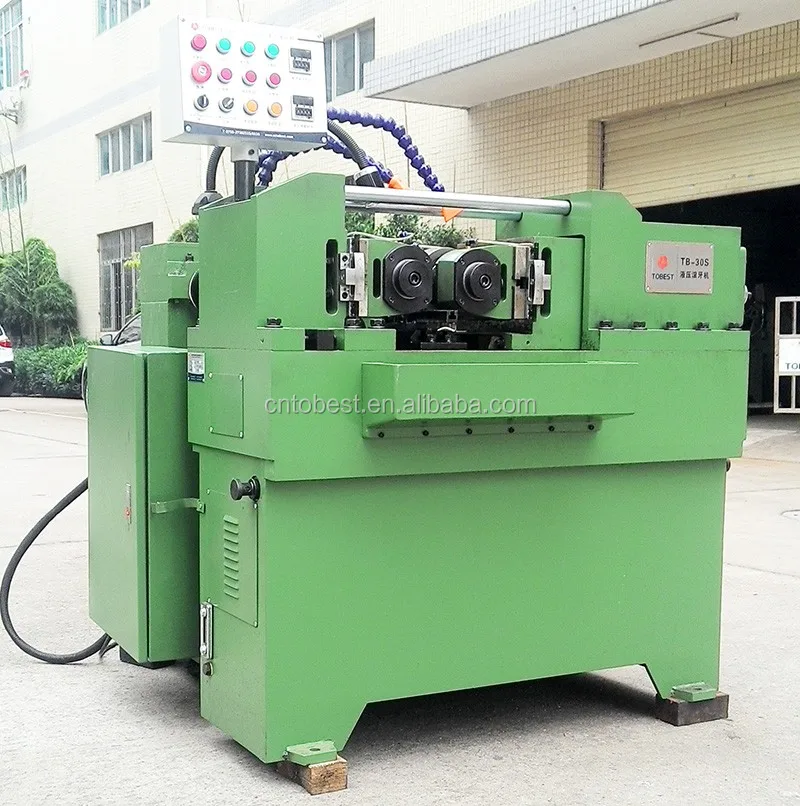

TB-30S

98% Response Rate

TB-60A

91.8% Response Rate

Packing & Delivery
Packaging
Size
210 cm (L) * 195 cm (W) * 150 (H)
Weight
3.6 T



Packaging Details
The normal package is wooden box(Size: 210*195*150 cm L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use PE film for packing or pack it according to customers special request.
Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
